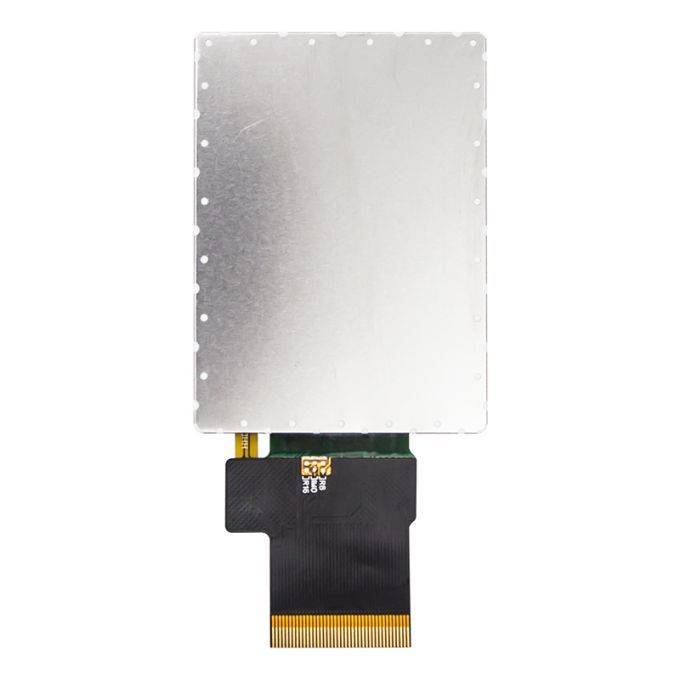

Product description
Type: tft-h024b18qvi/1/n40
Product type: tft vertical screen
Display: 240X320

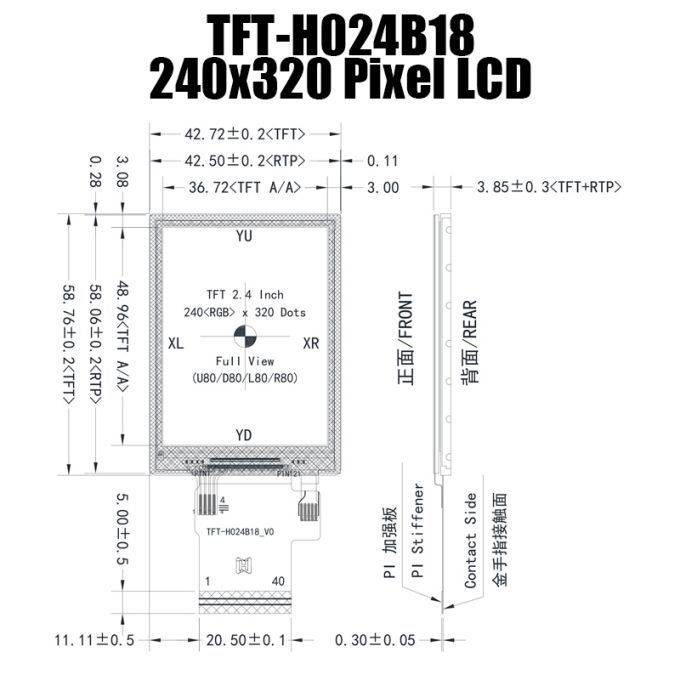

Body size (mm): 42. 72x58. 76
Visual window size (mm): 2. 4
Show size (mm): 2. 4
Valid dimensions mm: 36. 72x48. 96
Product applications: outdoor instrumentation instruments
Perspective: a holistic perspective
Backlight type or brightness: 1000cd/m2
Number of connections pin: 40pin
Interface mode: mpu
Special description: antistatic esd 8kv
Working temperature: -30~80°c
Electricity: 3. 3v
Driver chip type: st7789v
Product description

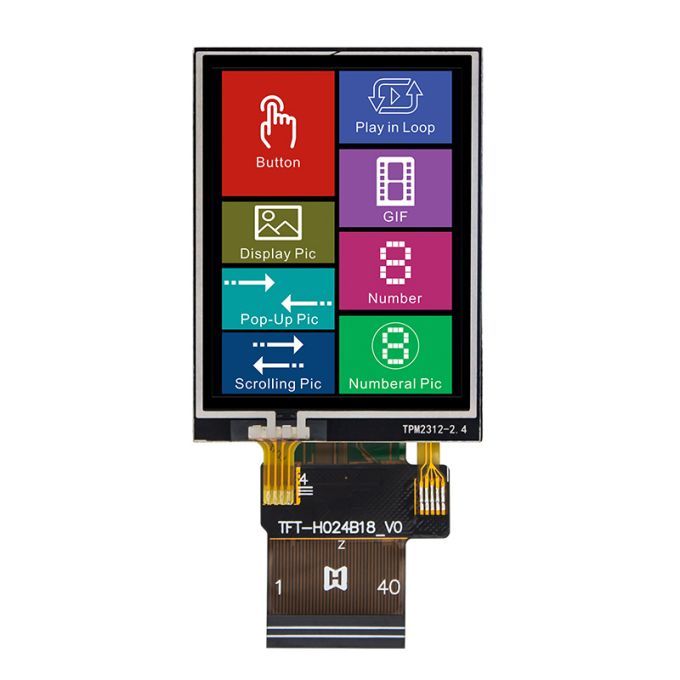

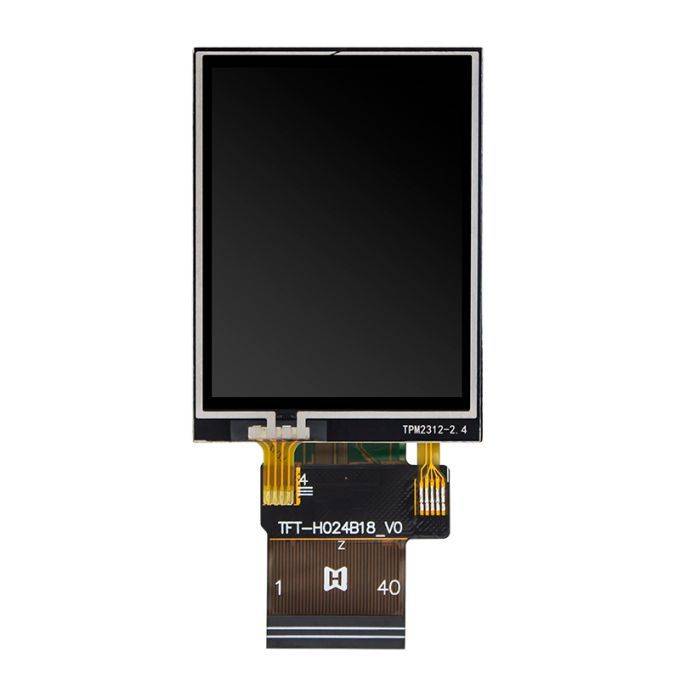

2. 4-inch colour screen ips 240X320 resolution tft lcd panel st7789v readable under sunshine for industrial control tft-h024b18qviviviviviviviq
Tft-h024b18qvicccs
Tft-h024b18qvics/n40 is a high-quality 2. 4-inch ips tft lcd panel designed for industrial control applications. Based on its impressive characteristics and functions, the panel is a reliable option for various industrial control systems。
The display panel has a clear and bright 240X320 resolution to ensure that your control interface is clearly detailed and visible. Ips technology provides a broad perspective from which best visibility can be obtained, regardless of the direction in which it is viewed, without colour distortion。
