A large graphic display with high resolution。
Up to 2 external sensors: 2mv/v, ±10v, ±5v, 4-20ma, 0-20ma
Select multiple units of measurement for each connected channel。
An internal data recorder with a non-disable memory allows you to store up to 130,000 measurement points when you configure a single channel (in the case of two channels, 65,000 measurement points)。
External data recorder (optional) using standard usb memory sticks to facilitate data migration to pc。
Zero function
Hold function
Picco function
Download function to measure the quantity of products emitted, such as from storage tanks
Total function: executes the sum of two channels。
Autozero function: automatically reset the channel when the measured value is below the programming threshold。
Keylock: avoid unenabled people change settings
Calendar function with date and time
24 columns of printers (optional) connected to rs232 line port through which the company's measurements and data can be printed。
Usb communications port, through which you can transmit the measured values to pc in real time。
Rs232 line communication port (optional)。
Rs485 communication port with modbus rru protocol (optional)
4 24vdc digital inputs with programmable functionality
5 programmable settings (relevant leds on each set point panel)
5 relays, programmable, all with exchange points
One or two analogue outputs (optional): 0-20ma-4-20ma-0-24ma, ±10vdc, 0-10vdc

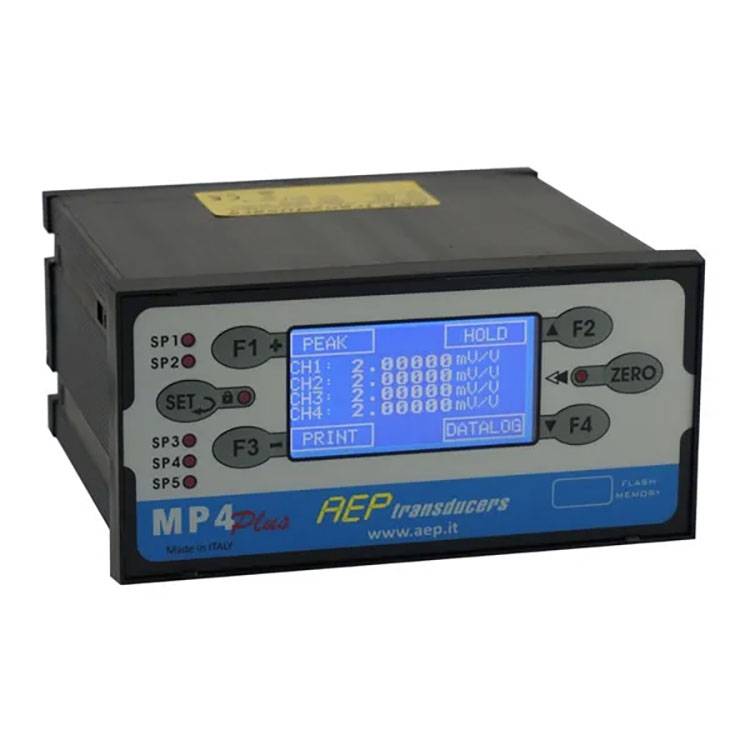

Repeater function: the instrument can be configured to display measurements from rs232 lines (e. G. From another mp4plus-master) (passive-from-passive) to allow remote view of the measurements. In this case, all local features (set points, usbs, printers, data recorders, etc.) enabled by mp4plus will be activated. The repeater function is valid only for one channel。
