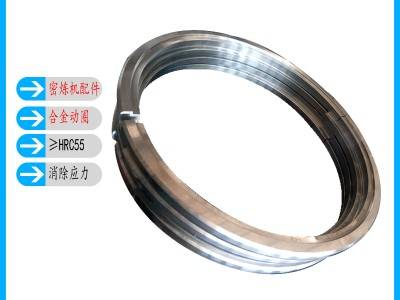

Detachment-style polycrystalming motor circles, also known as the polycrystals alloying rings, are located in a sealed position on the side of the rotor of the refiner, which are attached to the outer end of the rotor axis of the refiner, together with the cysts, and together act as a leak of material in the chamber of the sealed refiner。
The alloying ring of the refiner is designed to be round-to-right and round, and consists of four-size alloying rings. The base mass of the mercuric alloy is 45 # steel, and on this basis weld hard alloys, with a hard weight of 55 hrc, of approximately 4 mm alloy layer, which requires a width of 0. 15 for the hard alloy on the surface of the mercurator; it shall not affect the binding strength of the metallic surface and alloy layer, and the cracks shall not penetrate the mercantile base; and the alloying ring of the mercantile shall require a heat process to be eliminated after welding
Smelting motor circles welding hard 5mm alloy
Surface hardness 55hrc
(b) smelting motor circles, after welding the alloy, require ablution treatment, i. E. The elimination of stress and the prevention of deformation
Cyclical motor circles are generally open, easy to replace, and blunt at the cutting
Detachment-style compact motor circles are classified cover parts。
(b) decline-style compacting motor circles require welding for alloy: their surface hardness requires 55hrc
(b) smelting motor circles, after welding the alloy, require ablution treatment, i. E. The elimination of stress and the prevention of deformation
Cyclical motor circles are generally open, easy to replace, and blunt at the cutting
The following example is the fall-down compressor m160 round: the alloy layer is usually 4 mm, with a total kinetic thickness of 17 mm; the outer diameter is 358. 5 mm; the inner diameter is 310. 3 mm; and the size of the large company's drop-off compressor motorcycle is usually the same。
In order to be more resilient to customers, the dalian leathering loop requires an alloy layer to be thickened to 5 mm, which can be customised if requested。
Dalian is fully committed to pressurizing refiners, drop-off refiners, and to fittings and maintenance services for roll-over refiners. The company's technicians have had more than 20 years of experience in the work carried out by the former state-owned enterprises, and the company has taken steps from the procurement of raw materials, the processing of spare parts, quality testing and the assembly of machines to ensure the quality of each product in strict compliance with technical requirements。
Main products: precise fittings and refiners maintenance, long-term preparation of precise fittings, experience and cost-effective processing of selected materials in strict compliance with drawing requirements。
