Taiwan united nations us9075 circle

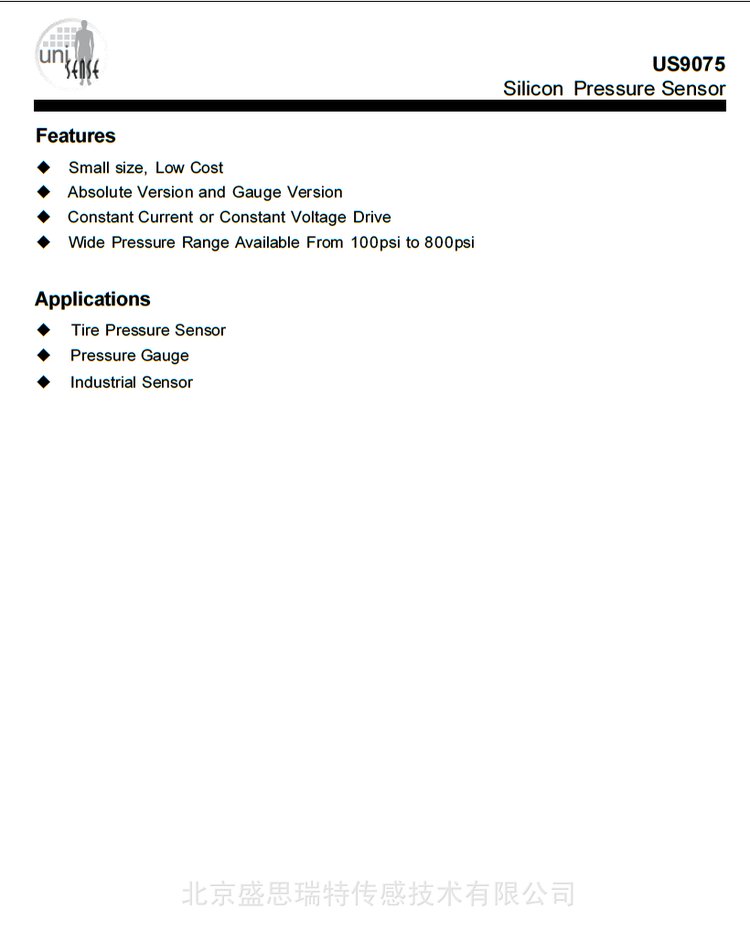

Feature
Small size, low cost
Versions and sheet versions
Constant current or constant voltage drive pressure range from 100 psi to 800 psi
Application area
Tyre pressure sensors
Pressure table
Industrial sensors

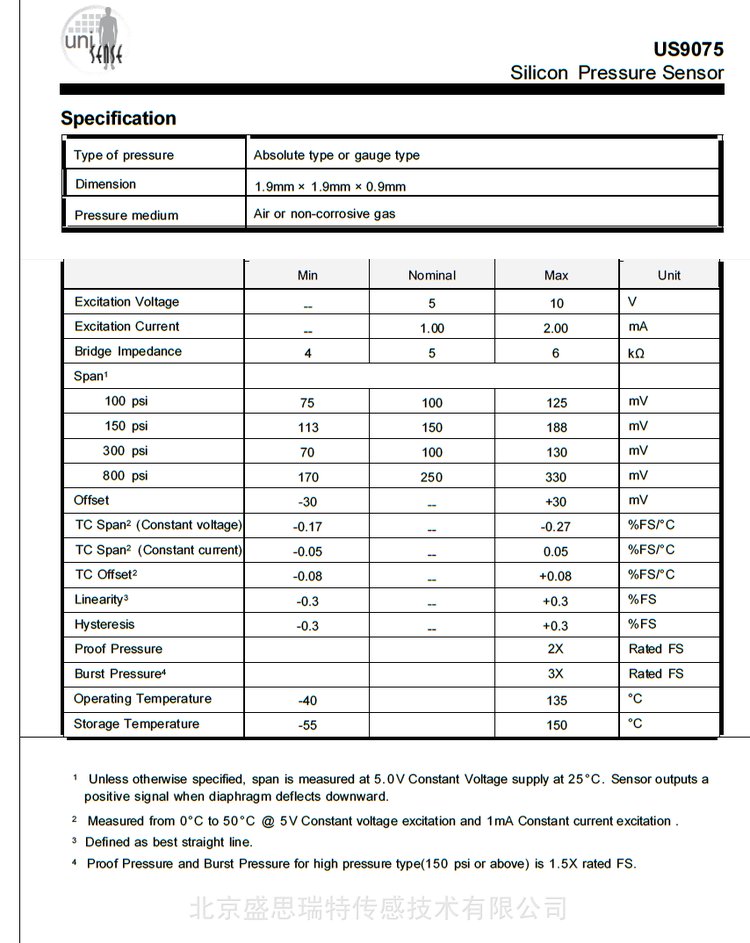

Pressure type: insulation and surface pressure
Dimensions: 1. 9 mmx 1. 9 mmx 0. 9 mm
Electricity: 0-10v
Electricity: 0-2ma
Circuit resistance: 4-6k
Output:
100pis 75-125 mv
150 pis 113-188 mv
300pis 70-130mv
800pis 170-330mv
Compensation: ± 30 mv
Linearity: ±0. 3% fs
Stress delay: ±0. 3% fs
Working temperature: -40~135°c
Storage temperature: -55~150°c



1. Unless otherwise specified, the range is measured at 25°c under conditions of 5. 0 v constant voltage. When the film is tilted downward, the sensor will output the positive signal。
2. Measured from 0°c to 50°c, using 5°v and 1 ma constant flow incentives。
3. Defined as a straight line。
4. Verification pressure and blast pressure of high pressure type (150 psi or more) equals 1. 5 times the rated fs

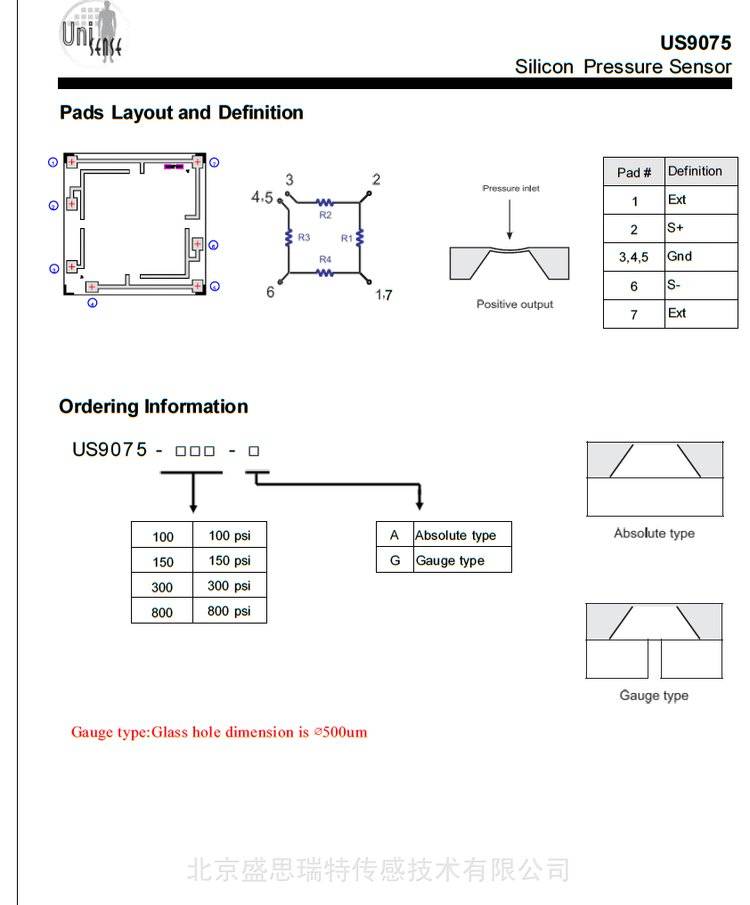

Model
Us9075-100-a
Us9075-150-a
Us9075-300-a
Us9075-800-a
Us9075-100-g
Us9075-150-g
Us9075-300-g
Us9075-800-g
Us9076-015-a
Us9076-030-a
Us9076-050-a
Us9076-100-a
Us9076-015-g
Us9076-030-g
Us9076-050-g
Us9076-100-g
Us9076-015-e
Us9076-030-e
Us9076-050-e
Us9076-100-e
