Sensirion heating air-conditioner oxygen 4v amplification pressure sensor sdp2000-l
Sdp2000 differential sensors accurately measure pressure differentials up to 3,500 pa (14 "h2o") and provide results of simulations of 0-4 voltage output. Sdp2000 sensors apply to high-requirement applications, such as medical and hvac systems, which require an ultra-high pressure differential range。
Like all sensirion's pressure differential sensors, fully calibrated and temperature-compensating sensors have good long-term stability and high sensitivity at very low pressure differentials。
Sdp2000 differential pressure sensors are based on the sensirion's innovative cmosens® technology, which combines sensor elements and process electronic elements in a small cmos chip. The cmosens differential sensors provide reliable sensor signals, free of drift and high dynamic ranges。
Pressure range 3500 pa (one-way)
Simulation of voltage output: 0 to 4v
Full calibration and temperature compensation
No deviation, no drift, no delay
High dynamic ranges based on flow measurement principles
Not sensitive to the direction of installation
Brand:Sdp2000-l
Work pressure: 0to3500pa
Pressure type: differential pressure
Precision: 1. 5%
Output type: simulation
Installation style: smd/smt
Port type: dual
Working power voltage: 5v
Working temperature: + 60°c
Working temperature: -10°c
Work power currents: 4. 3 ma
Envelope: bulk
Port size: 3. 4 mm
Power voltage -: 5. 25 v
Power voltage - 4. 75 v
Quick response type: 3. 4s
Product characteristics
Accuracy is 0. 1% of the full range (near zero)
2. Simulation voltage output for signal magnification: 0-4vdc
3. Achieving no deviation, no drift, no lag, high dynamic measurement ranges based on flow measurement principles
4. Full marking and temperature compensation
Not affected by the direction of installation
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

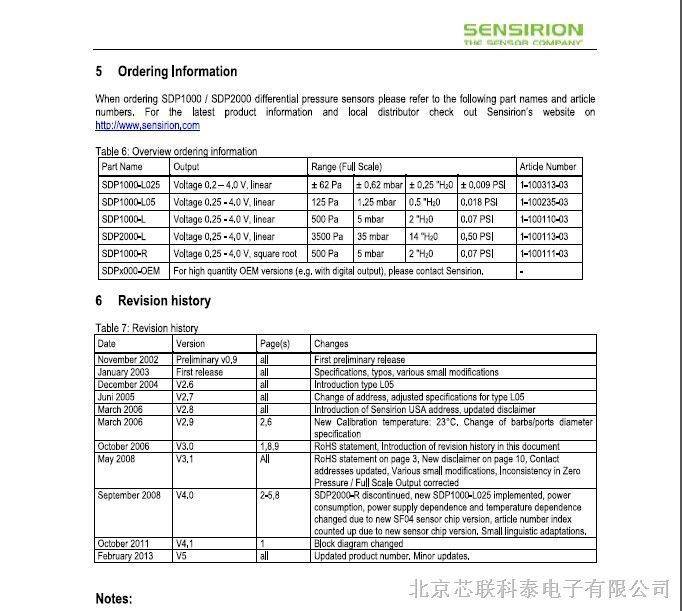

Model: mark range: precision product characteristics:
Sdp1000-l025-62 to 62 pa 0. 5% fs/ 1. 5% m. V. Linear
-/+ 0. 25" h2o
Sdp1000-l05 0 to 125 pa 0. 2% fs/ 1. 5% m. V. Linear
+0. 5" h2o
Sdp10000-l 0 to 500 pa 0. 1% fs/ 1. 0% m. V. Linear
+2" h2o
Sdp1000-r 0 to 500 pa 0. 2% fs/ 1. 0% m. V. Square root
+2" h2o
Sdp2000-l 0 to 3,500 pa 0. 1% fs / 1. 0% m. V. Linear
+14" h2o
* fs = full range or full scale, m. V. = measured value; greater value is valid。
- - - - - - - - - - - - - - - - - - - - - - - - - - -
Application area
1. Medical applications
2. Heat, ventilation and heating air-conditioning (hvac) applications
3. Industrial applications
4. Motor electronics
5. Indoor air purification
The assessment provides an assessment package ek-p3 to assess and test the sdp 600 series differential sensors。
Relevant model:
Sdp500
Sdp510
Sdp600-500pa
Sdp600-125pa
Sdp600-25pa
Sdp610-500pa
Sdp610-125pa
Sdp610-25pa
Sdp601
Sdp611
Sdp606
Sdp616
Sdp620
Sdp630
Sdp621
Sdp631
Sdp606
Sdp616
Sdp10000-l025
Sdp10000-l05
Sdp10000-l
Sdp1000-r
Sdp2000-l

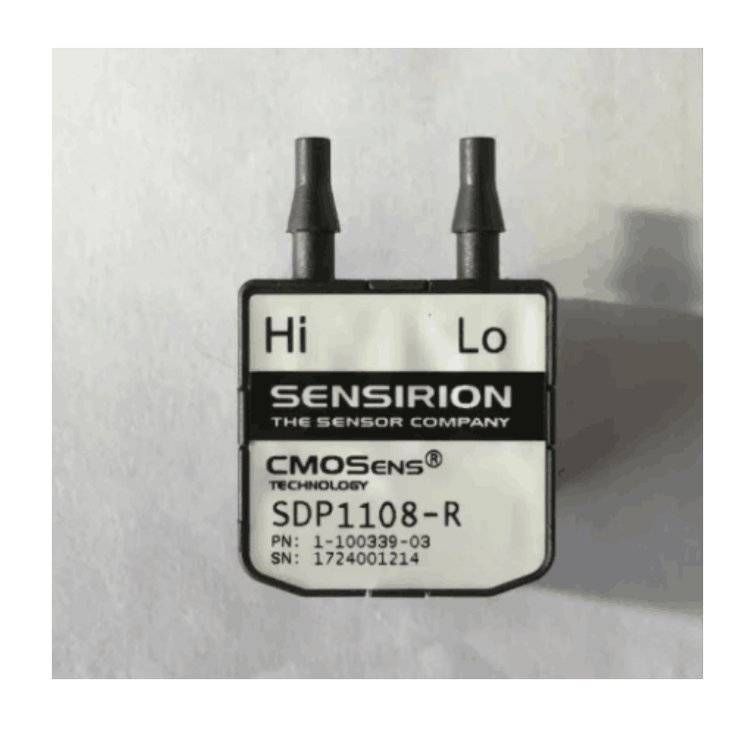

Sdp1108-r
Sdp 2108-r
