Overview

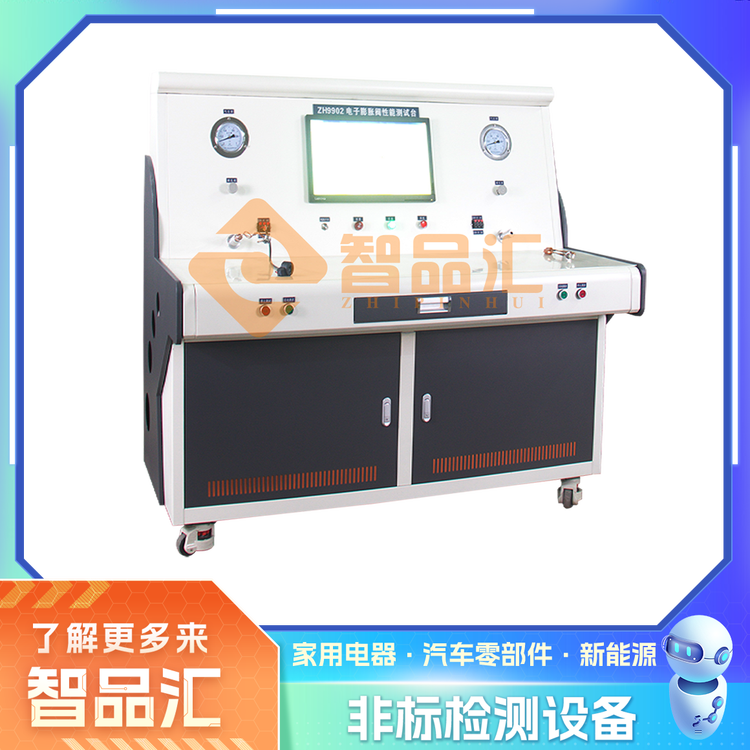

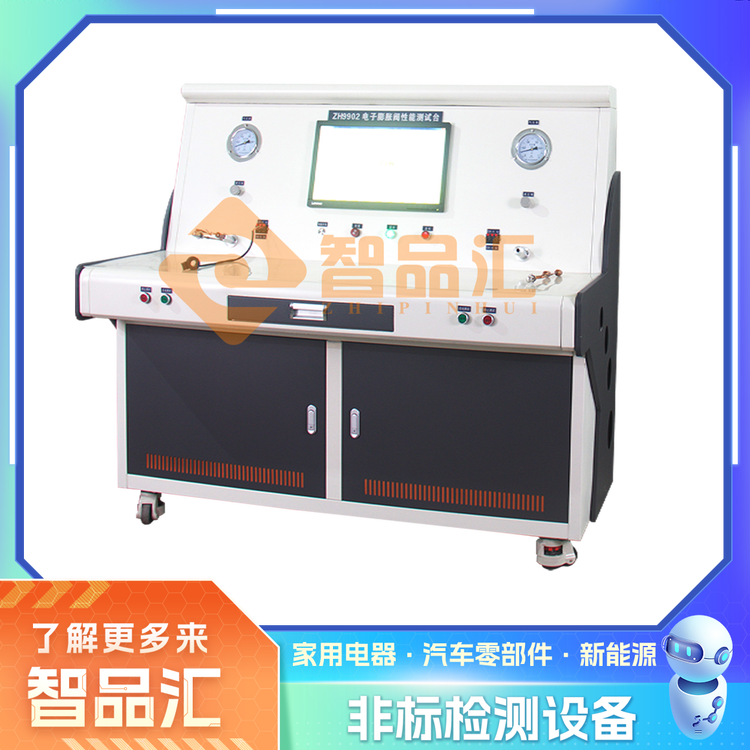

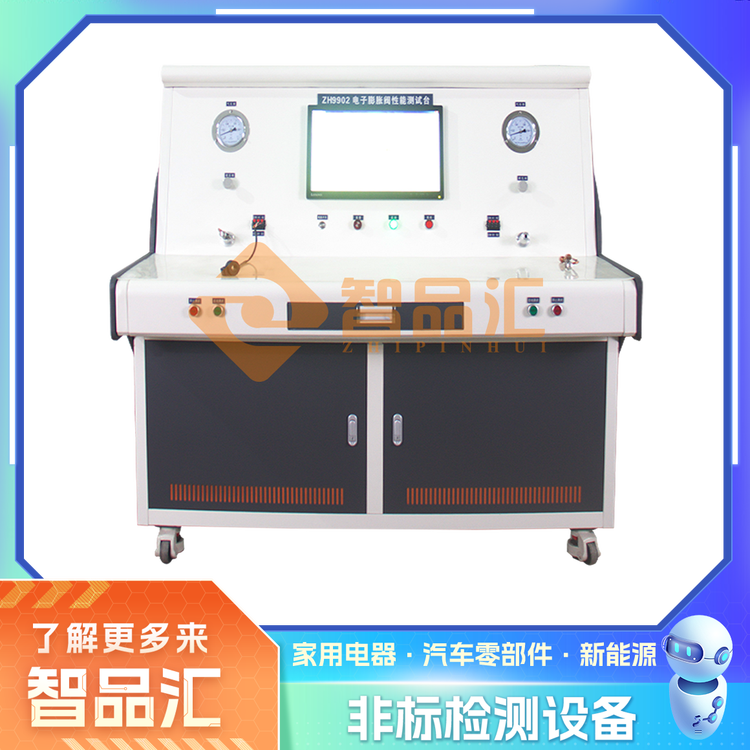

This equipment applies to action tests of electro-inflating valve flow, flow tests, integrated oil pressure tests, etc. Full-way plc monitoring, custom-made pulse drives are tested for open valves, and pulse numbers and frequencies can be defined on demand and responsive. Gas flow gauges are used to detect the flow of air at the openings of electro-inflating valves. Corresponding flow conditions under various pulse opening valves can be effectively detected. Among them, the air pressure, pulse parameters, detection time and the upper and lower limit warning of flow values can be adjusted. The whole machine test is scientifically sound and simple. It's the plant's ideal assistive detection equipment。
Ii. Technical specifications
1. Number of work places: 2
2. Power: ac220v/50hz
3. Detection media: air
4. Gas source pressure: 0. 8 mpa clean compressed air
Flow meter performance: responds to 10 ms with an accuracy of ±0. 8% reading ±0. 2% fs
Flow measurement range 0-100l/min
6. Pressure reduction valve performance: use smc high-precision pressure adjustment valves with a sensitivity of 0. 2% f. S, heavy
Up to ±0. 5% f. S。
Air flow test: 0. 1 mpa compressed air (modifiable)。
