Product name: rottkappe insulation heater type b-..
Product type: type b-..
Product introduction

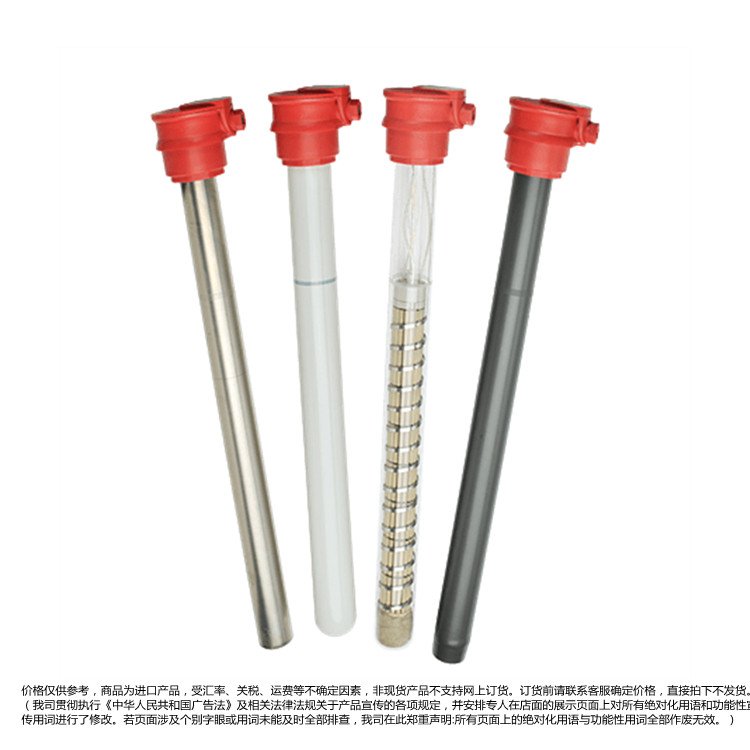

Rotkappe immersion heaters are suitable for direct heating and can be applied to almost all working liquid appliances. It uses widely used, chemically resistant, immersion-resistant tube materials, with options depending on your different heating needs. High-quality material applications allow products to live long, to work in better condition and to operate the system correctly. Rotkappe thermostat heaters consist of modules and tubes, durable heated cores, end-of-wire protections and guidance lines。
Performance characteristics
I'm going to sink the heating tube
We can provide you with plumbing materials for all your applications. The heating length (min. Leaching length) indicated by the circle is typically two thirds of the length of the tube. The liquid surface may not be lower than this mark during heating. Even in the event of high fluid surface fluctuations, the heating component must be covered by liquid。
Heat cores are durable
Durable heating cores are made from high insulated ceramics and have good mechanical strength. High temperature resistance is used to heat silk to achieve better heat radiation from pipe to liquid. Heated cores of the immersion heater can be rated at a volt equivalent to max. 500, single-phase, two- or three-phase connection。
Wire end protection set bc
The bc-wire end protection for the immersion heater consists of high-temperature and stable pp material. Good machinery, temperature, strength and extensive chemical resistance are guarantees of non-facility in most work fluids. In the case of high and low temperatures (>80°c) or in a highly oxidized environment (example: electrolytic or nitric acid), we recommend the use of the pvdf (multiple difluoroethylene) material's end-of-pipe protection (bc/l). Adopt ip 65 under the en 60528 standard. The ability to rotate a hat with a wrench (sb) is designed to guarantee a simple connection after it is connected to the guide (after installation)。
Guide lines
The pvc connector is a cable with a standard length of 1. 6m. If you need, we can also provide additional lengths of guidance。
Optional features and accessories
Install emp
Supporter hm
Post hb
Srf
Installation of wrench sb
Thb
Shb
Technical parameters
Origin: germany
Rating voltage: 230 v 400 v
Heated core rated voltage: max. 500 v
Heat length min 2/3 of chief
Cables: 1. 6 m
Guided material: pvc
Protection kit: pp (polycium)
Heated core material: ceramics
Protection level: ip 65
No. Of years: single, two or three
Gareth: high temperature resistance
