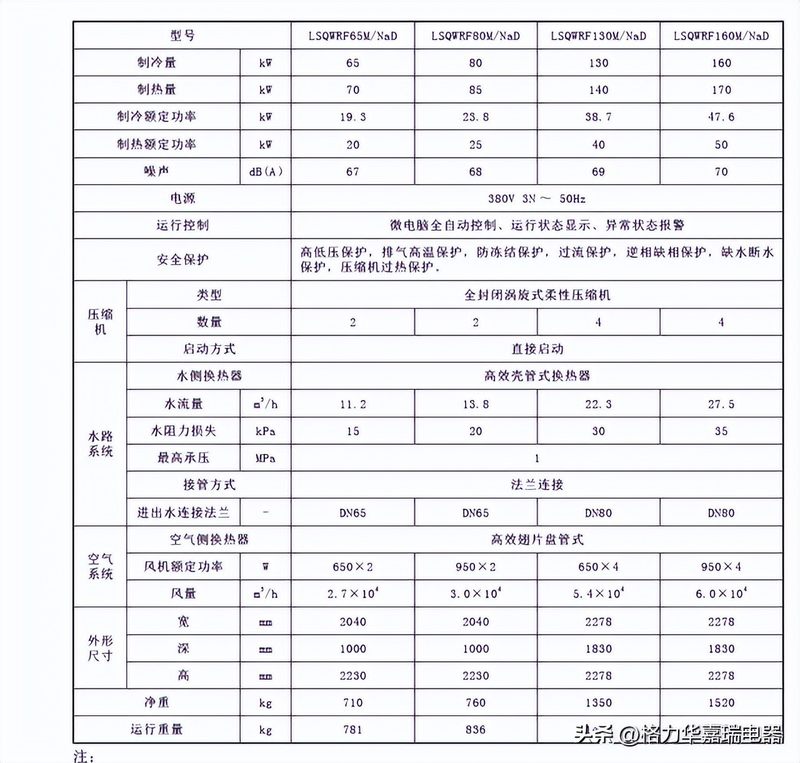

The unit performed design, construction and inspection according to national standards gb/t18430. 1-2007. When there is a change in the corresponding standard, it is implemented on the latest standards. The main technical parameters of this crew are marked in the aircraft. The greek e modular cold (hot) water unit was further developed on the basis of the d series, which is better reliable and more rationally designed than the d system. The cold design saves cooling towers, which are very suitable for dry areas with water shortages. E. Modular cold (hot) water units are widely used in new and modified buildings such as hotels, apartments, wine houses, restaurants, office buildings, shopping malls, cinemas, gymnasiums, hospitals and factories. Especially for special occasions such as high requirements for noise and the surrounding environment, non-admissibility of boilers and difficult installation of cooling towers, work quality r410a。
Product characteristics e the following are the main features of the modular cold (hot) water unit of the series:
Supercompatibility: the gwi e series of modular cold (hot) water units can combine multiple modules, each of which can be structured in the same form, performance, or different, and each module has a different nominal refrigeration volume, with 65kw, 80kw, 130kw, 160kw options. 65, 80, 130 units each have two fully independent refrigeration systems, 160 units each have four fully independent refrigeration systems, with 4e series modules cold (hot) 5 over a combination of 1-16 identical or different modules, forming a series of products in the range 65-2080kw. 65, 80, 130 units can combine up to 16 modules and 160 units can combine up to 8 modules。
The main module desalinization technology: the greek e series module cooler (hot) water unit has the capability to downplay the main module, and any one of the units can be set up as the main module to communicate with the other units by plugging in the handheld. Super protection: advanced micro-computer control systems, fully functional security protection, and powerful fail self-diagnosis。
High reliability: the use of well-named refrigeration fittings, carefully designed and constructed, coupled with the design of a multi-refrigeration system, improves the reliability of the fleet operation。
Full closed vortex compressors: have the advantage of having fewer motor parts, less noise and vibration, more reliability and more efficient than other types of compressors。
Compressors operating evenly: a unique method of balancing between compressors, ensuring that each compressor in the system rotates and prolongs its useful life。
Humanized operational design: the display of screens provides a humanized and friendly hint when the aircrew operates at ambient temperatures beyond the design allowed。
Low maintenance costs: aircrew-specific, maintenance, repair and maintenance costs are low。
Use electro-inflation valve throttles: the fleet uses electro-inflation valves as a throttle-saving device to regulate higher accuracy, faster reaction and better reliability。
