The smc-led pressure reduction valve works as ar925-f20g
Product overview:

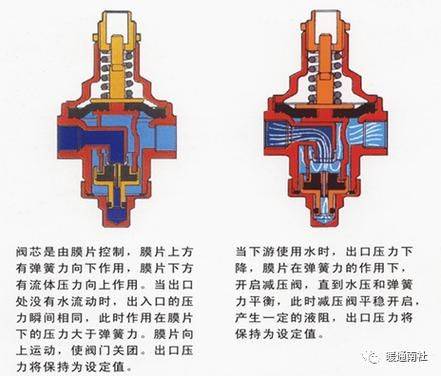

The pre-conductive pressure reduction valves regulate the flow of the medium by using the opening of the release device in the control valve to reduce the pressure of the medium, while at the same time adjusting the opening of the release device by using the function of the post-valve pressure to keep the post-valve pressure within a given range and, in the event of changing import pressure, to keep the export pressure within a defined range to protect the subsequent living equipment. This type of valve shall normally be installed horizontally in the pipe。
Product characteristics:
The dynamic properties of the pressure reduction valve are those of the transition state of the second side pressure over time during the work of the pressure reduction valve, which is usually evaluated by the transition of the second side pressure over time when the secondary side flow of the pressure reduction valve is suddenly closed。
The dynamic properties of the pressure reduction valve are not only related to the parameters of the valve itself, but are also influenced by factors such as the volume of a side circuit and the volume of a side circuit. If the pressure-relief valve has a bad dynamic properties, an abnormal pulse pressure is created, which seriously affects the normal work of the circuit。
Motion of work:

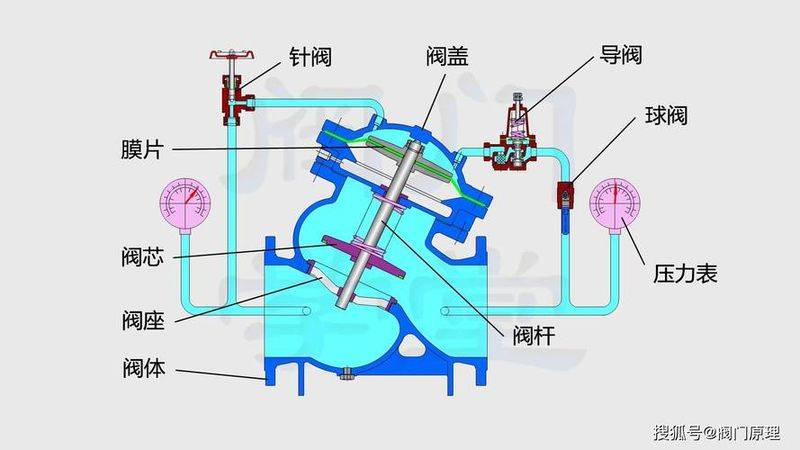

There is an important function of the remote control point of the pre-guided pressure-relief valve, i. E., to regulate the spring strength of the remote pressure-relief valve by passing through the pipeline to another remote pressure-relief valve (like the structure of the remote pressure-relief valve and the lead control part of the pressure-relief valve), which can regulate the fluid pressure at the upper end of the main pressure-relief valve, thus applying a remote pressure on the export pressure of the pressure-relief valve, provided that the pressure that can be regulated by the remote pressure-relief valve does not exceed the adjusted pressure of the pressure-relief valve itself。
Common model:
Air cleaner ss5y3-42-06-01f
Air cleaner sy3140-5lou
