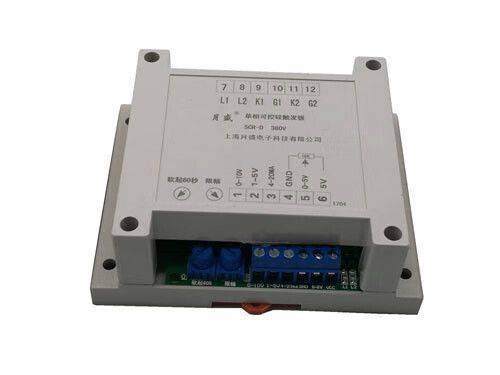

Hangzhou runko electronics ltd. Www. Loncont. Com tel: 0571-88139965 fax:0571-88331960 single controlled silicon transfer trigger (i) overview the rationale for moving the trigger is based on the size of the control voltage cont (control signal is normally 0-5v, 0-10v, 4-20ma, 1-5v, 0-10ma, etc.), the output end produces the transfer angle of the frequency of the double grid in step with the electrical voltage a wide pulse that changes from 180° to 0° to drive one-way or two-way controlable silicon, so that the voltage on the communication load can be adjusted from 0 to the maximum linearity, thus achieving the aim of shifting the pressure. The trigger's interior consists of synchronized phase detection circuits, sawtooth waves forming circuits, input control adjustment circuits, baseline circuits, moving relative circuits, driving trigger output circuits, and providing stable power for these circuits. The product is too small, too thin, smt sticker. It is flexible to combine with one-way, controlled silicon for semi-controlled, fully controlled bridge current current voltage. Portable device manual control or voltage signal, current signal automatic control. The trigger is activated by single-wide pulse force to adapt to a sensory or resistance load. (a) controls the output of the main circuit at 0v-uoff in the closed area. B. Control of voltage in uoff-uon is the basic linear area, and as the control of voltage signals increases, the voltage on the main circuit load increases; c. Control of voltage in the uon-5v area is the grid voltage on board. The current signal automatically controls the voltage signal control manually. (ii) there are two triggers such as single-phase controlled silica transfer triggers, all of which are screwdriver-tight electrodes, device-sets, all of which have an electrical slow start. 1 one-way controlled silicon semi-control bridge transflow trigger, lsjk-scrt type; 2 one-way controlled silicon all controlled bridge integrator, lsjk-scrf type. The principle of the controllable silicon transfer trigger module is that when the size of the control voltage is changed (0v-5v), the internal trigger pulse of the relative grid voltage 180°-0° is generated, and the output end (a, g) triggers the corresponding controllable silicon conductor, so as to move the charge. The pv separation between the control part of the transport phase trigger and the output trigger end allows for both manual and automatic controls. In applications, only 15 ± 3 vac is required to provide synchronous voltage for the grid. The wires are all screwdriver tight electrodes, installed in a device that is extremely convenient to use. Hangzhou ronko electronics ltd. Www. Loncont. Com tel:0571-88139965fax:0571-88331960
