Fix your own lightning-throwing lcd panel

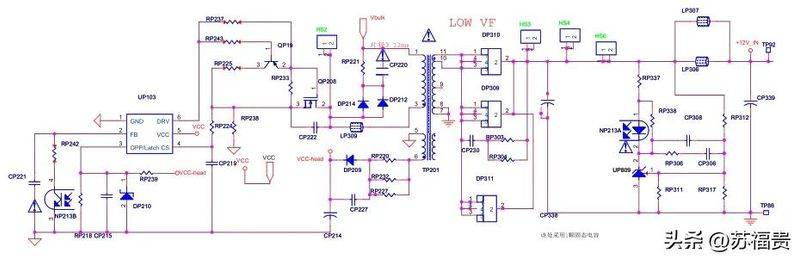

Long rainbow lcd type: 43q3t, based on model dmtm50d-1sc560-df8, r-power plate assembly component juc 6. 692. 00161336. Some of the damaged circuit charts are attached for reference。
I've been working on it for decades. I've been working on too many thunderstormers. There is a regular pattern of thunder into television, and it is particularly easy to find damaged elements along the route followed by lightning currents。
The hull of the television should be turned on, so that no direct connection to the communicator would otherwise continue to expand the amount of damage to the components, which would have been undamaged, and must be measured and short-circuited elements must be found using a universal meter. The first observation of the extent of the fuse damage is that the fuse of normal lightning does not necessarily break down, as the fuse of lightning has not yet been melted, and the subsequent circuit has broken down the entire engine without working; if the fuse is seriously blacked or even broken, it may have been caused by the second launch of the client's lightning, the power pipe includes the full-flow bridge, and the damage must have been extensive. The elements that are vulnerable to damage by lightning are approximately: whole current tube, power tube, power pipe propulsion circuits, integrated circuits, radial circuits, steady voltage circuits 431, and so on. In sum, they must be checked to ensure that as little as possible of a bad part of the network is left out, that undamaged elements are identified, that new components are installed in one place, and that recalcitrants are installed so that they can be repaired successfully。

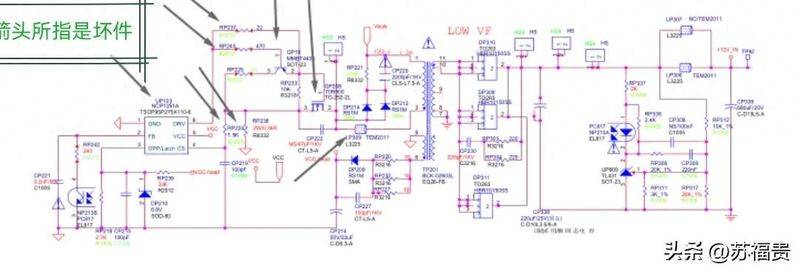

I have marked all the pieces of damage caused by this lightning strike on the drawings, all the models of the damaged elements are on the drawings, which are more detailed, and the replacements use the prototypes as far as possible, and the resistance uses less error. Very little damage was seen when the lightning struck, and we could detect it by measuring the electrical resistance value of the circuit, if there were any。
The element of each strike damage, which is not fixed, is likely to be small and is related to the severity of the strike. A few years ago, there was a lightning strike on the insurance company, the circuit boards were out of place, the back was burned many times, there were numerous pieces of damage, which i fixed for several days, and the cost was not settled, and later i learned that the insurance clerk had not paid the premium. In another instance, a rural client, a mine that just blew up a petrol motorcycle in the yard, said: “the electrical equipment in the home with the electronics is bad” and the magnitude of the thunderbolt。
I'm particularly fond of thunderstorming television. It's good to fix it. People who aren't always repairing it may be a little hard to fix the spare parts。
Electronic presentations for information. Exchange of maintenance experience, less detour, savings in maintenance costs and common progress。
