Although the friends who used to talk to each other said that the screen had broken, i didn't think it would happen to me, and i thought i was a very careful person, even though the phone never had a membrane or a setup, it would not break the screen. Still, we can't escape murphy's law. During the night before, while sharing a shopping heart with a colleague, the mobile phone was accidentally dropped off the computer table, face-to-face, and the screen was broken and the screen was directly disabled。
There's a couple of things going on in the head, and there's a house for rice, a maintenance shop for the street, a screen for the street, and a screen for the street. It's something i've always thought of as a high-end thing in my heart, but it's easy to look at the change of screens on the internet, so it's the cheapest way to buy the screens。
Treasure search link

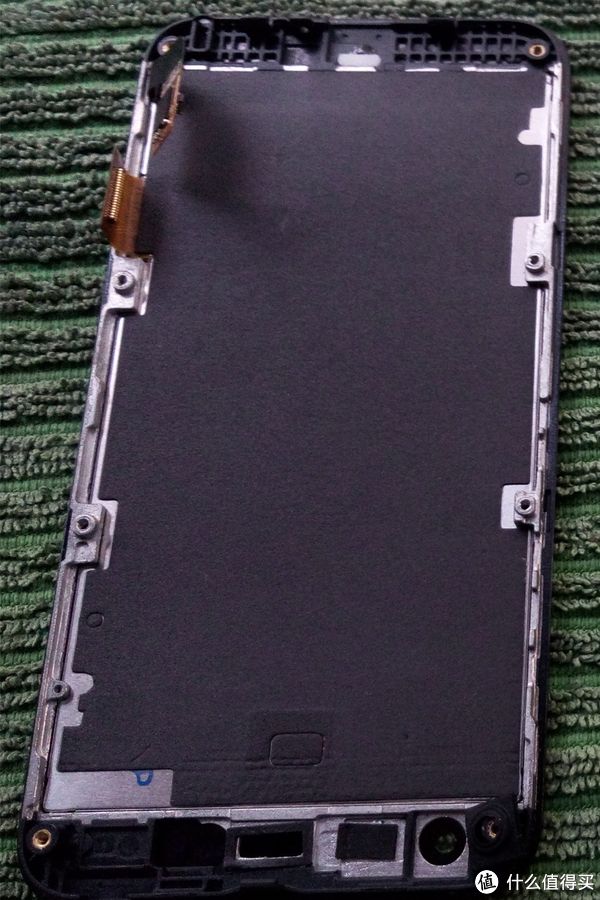

The network has prices ranging from 100 to 400, and each family says it's original and supports inspection. I finally picked out a 100-plus screen and sent it to sunfeng. In general, broken screens are replaced directly with extra screens, meaning that the screen is replaced by a total of frames, with frames, plus graphite and no graphite, which means a black layer of graphite on the back of the screen, which facilitates heat dispersion。
The post was not prepared, either because it was considered simpler to change the screen or because mi2s was already the type of machine for the previous two years. But there were problems in this change of screen, and there was no mention of it on the internet, so i took it down several times, and my colleagues knew that i was repairing my own change of phone screens, and that i was admirably admired, but the whole process was easy, because i didn't try and think i could fix it with my own abilities. The main purpose of this experience is therefore to ensure that, when you encounter similar or related problems, you do not fear, try and break the psychological barriers, not just the m2s cell phone, but also other models, which can also be repaired, and can be adapted to similar problems. A guy who fixes computers and his cell phone, he's got to be a girl
Let me now focus on a few of my dismantlings。

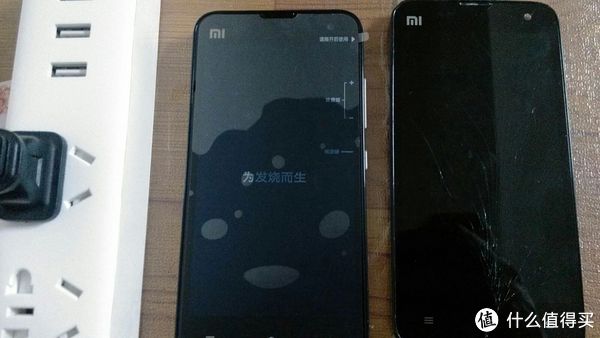

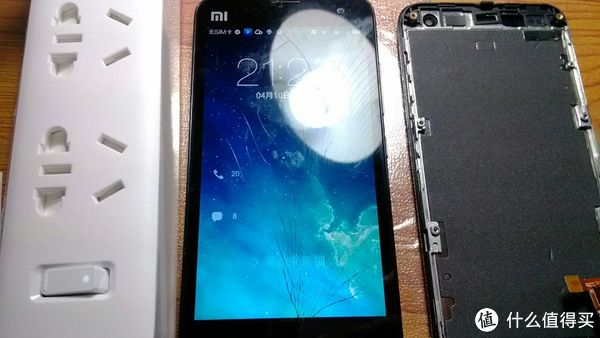

The first was a broken screen photo, which was deleted, downloaded from its own “speaks”, which was useless for one day, with a lot of phone calls and text messages。
The first change was very careful, and the screwdriver was given by the seller. If not on the shopping page, the seller could be asked for one, and only this tool could be used。

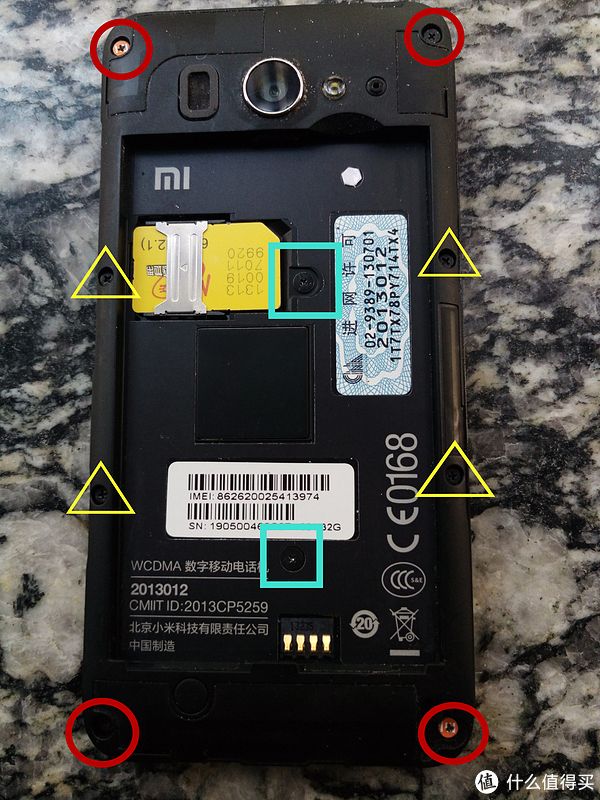

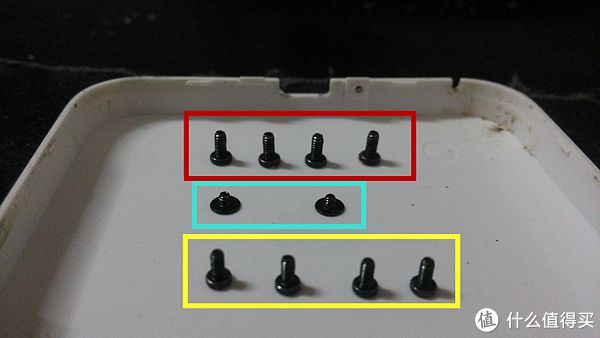

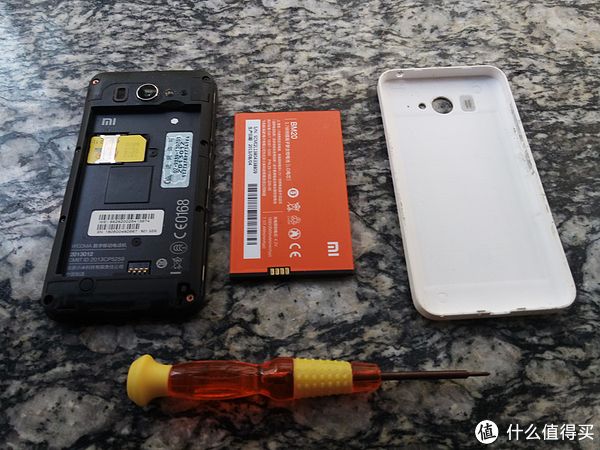

In accordance with the network process, switch off, remove batteries and remove sim cards. It's a total of 10 screws up and down, three small and medium, and it's better to recognize it, so just take it down and put it away, and remember which screw to use。
The three cards on the display screen were used to fix the main plate lid and to pick it off slowly from the lower left side of the cell phone, so that the process was not too violent and the button above was not broken。

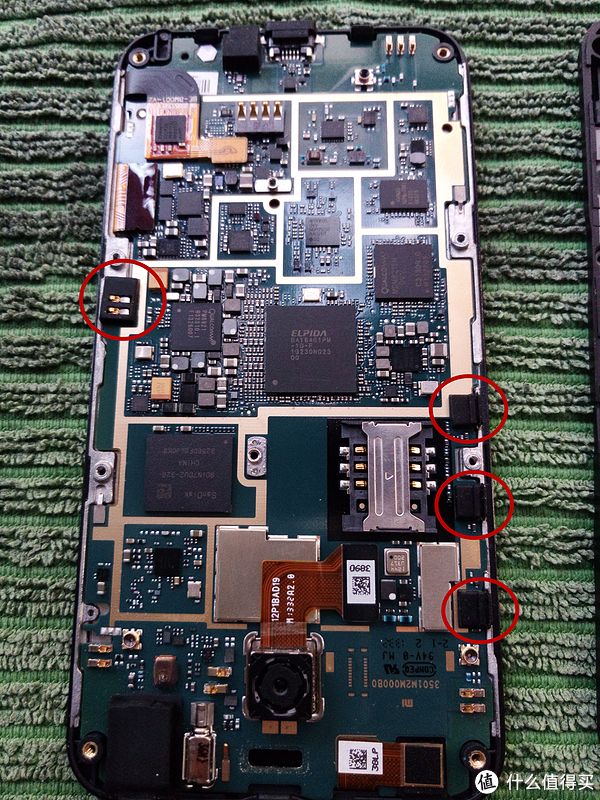

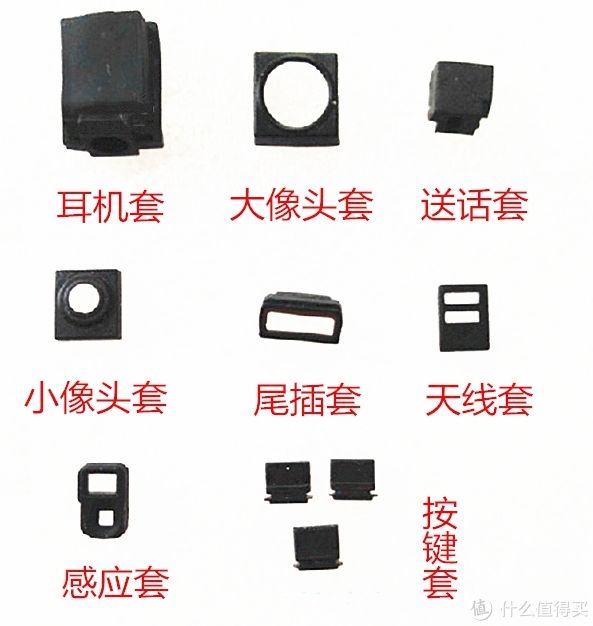

Remember these more easily defunct positions and take them and keep them safe。

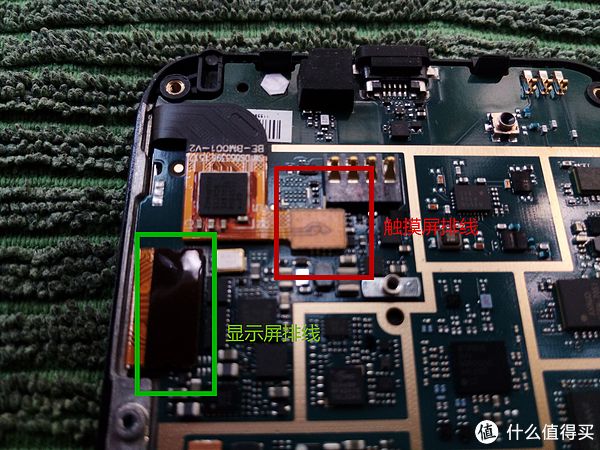

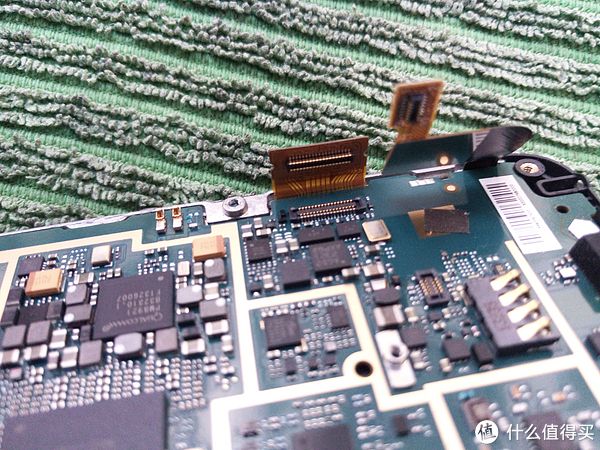

Light dials display and touch screen lines

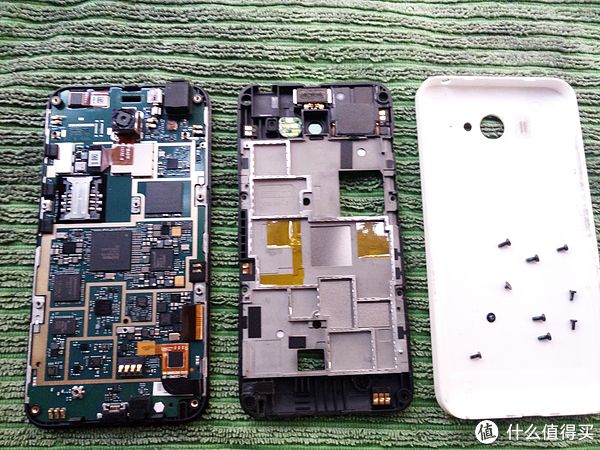

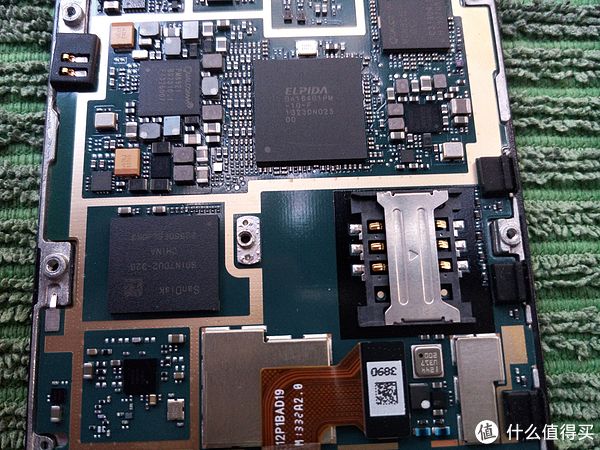

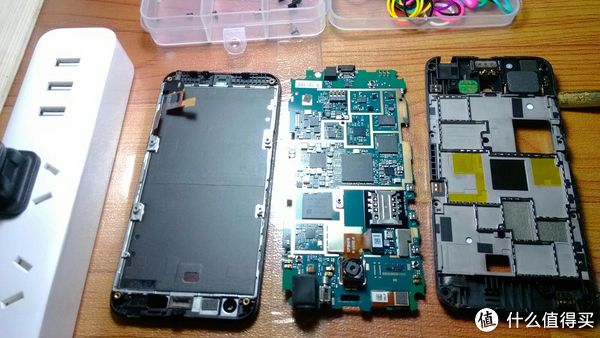

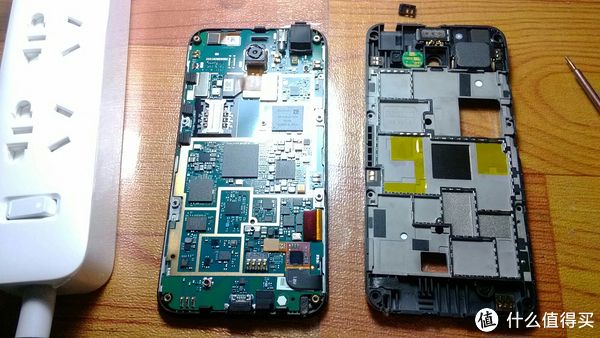

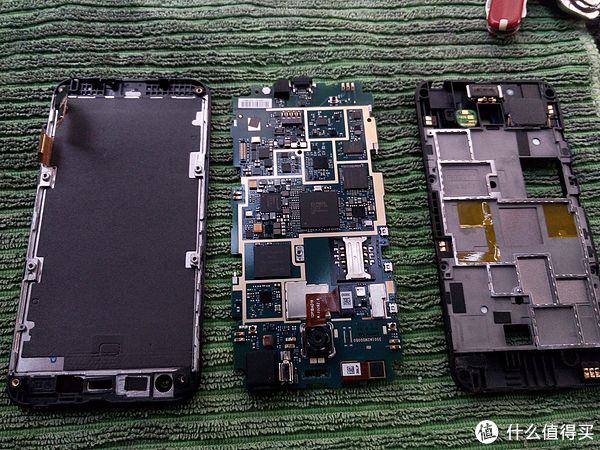

So, the main board is off。

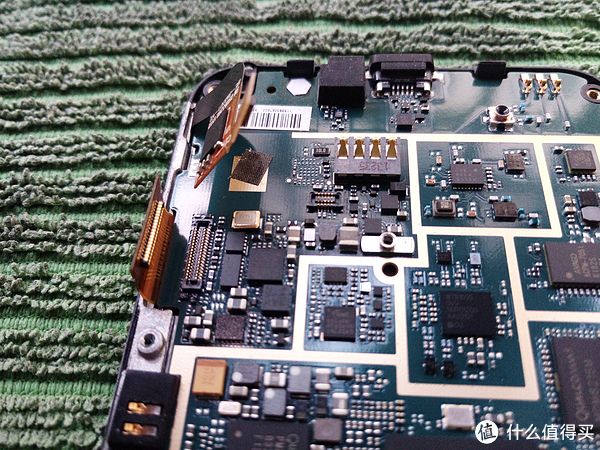

Switching the new main plate to the location of the screen line and touch screen line, pressing down, with a little bit of force, but not too violent, just like plugging into the computer mainboard, with the right eye and the clear feeling of entering。
Put back a few of the pieces of tape that were removed, and put them on the main panel, first to the button on the phone, then to press them slowly, and then to put them back on, and then there would be a clear “tip”, and you would feel it. Don't push it like that. If it breaks, it's dusty。

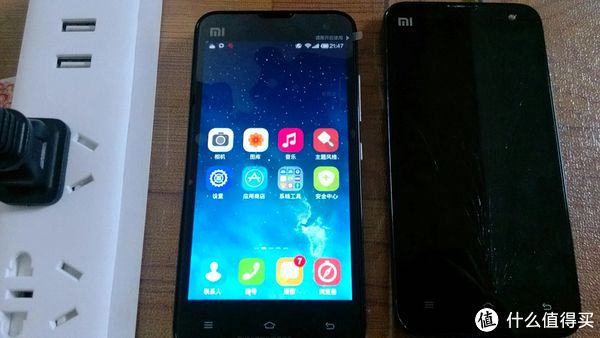

Then the screws, the cell cards, the batteries, the look, the on. Although the process was not complicated, it took me almost half an hour, mainly in the locations of screws and glues, with no pressure when they were plugged in lines, for a long time, while the main covers were covered, the glues fell down and recapped, etc. Turns on the screen, and finally the heart falls。

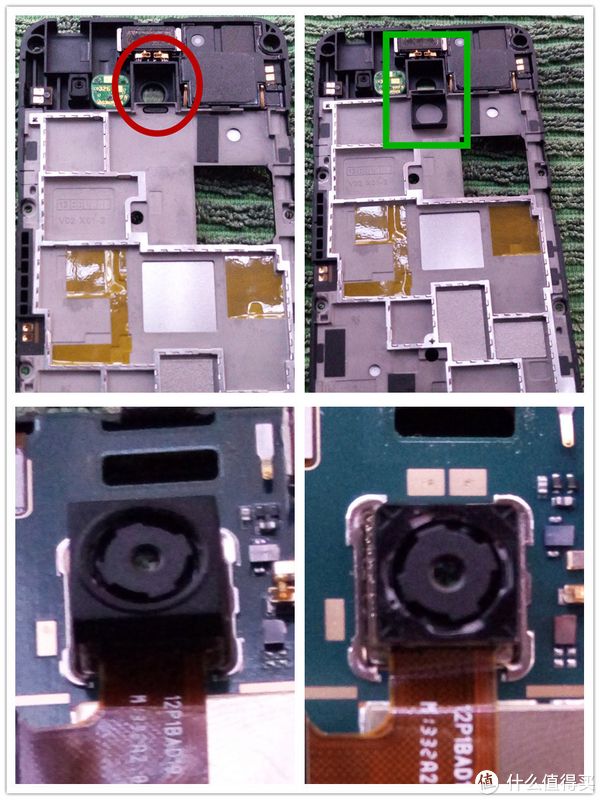

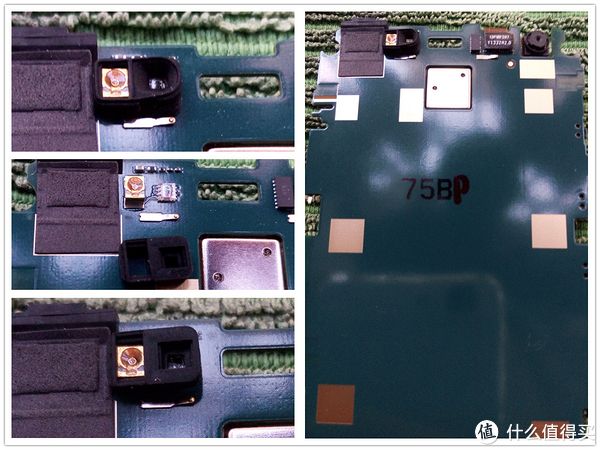

When people are obnoxious, they always take pictures and show off, but they find that the rear camera is not focused and that the nearness is blurry. It had been discovered that many people had this problem. And then there's the second one. The solution is that a glue in the camera sink on the main sheet needs to be removed, loaded to the camera, then covered. Turn it on, it's okay. The broken screen is thrown into the trash。

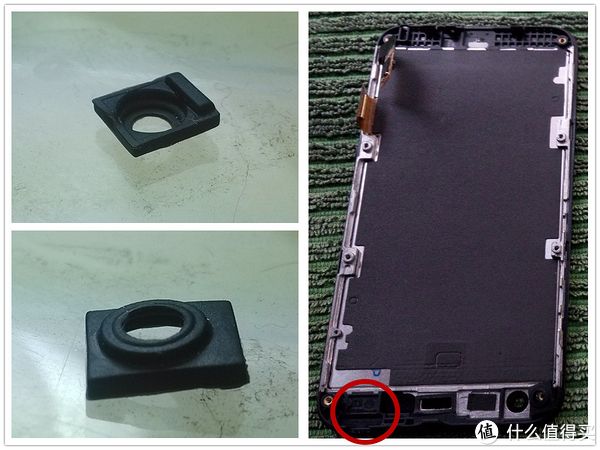

The next day, a telephone call found that the remote sensor on the screen was in trouble, that the phone was blacked as soon as it was reached, and that it had to turn to doo-mo and finally found a solution in a post. The total distance sensor position of the touch screen purchased was marked by a small tape plug that was removed in the same direction, which in turn was loaded, and the third was removed。
Cell phones are being removed faster and less than 10 minutes later. But at the third time, because of the urgency, a glue fell from nowhere and could not be found. But if the kids move in the past, then the phone should be loaded. I looked on the main panel and couldn't find its location, so i put it back on. There's nothing wrong with that。
I had the idea of writing an empirical note at the third time, but those words were valuable when they helped someone. The change of screens is not a complicated thing, but there is something that needs to be noted. In addition, some of the questions were asked at the mobile phone store, either on the main board or on the camera, which could not be solved without substantial money. If there is no real reason to change the spare parts, then you are directly refused to repair your mobile phone. So how important it is to learn to do it on its own, not just mobile phones, but also computers, which are more common electronic products, can look for solutions on the internet and then consider what to do next. The internet is a good thing, and everything you don't know can be answered on the internet, and it's a bad thing, it's all over the network, it's spoiled, and it doesn't really work. In the absence of a network, the search of information through books often leads to a lot of other things that are now fatal。
