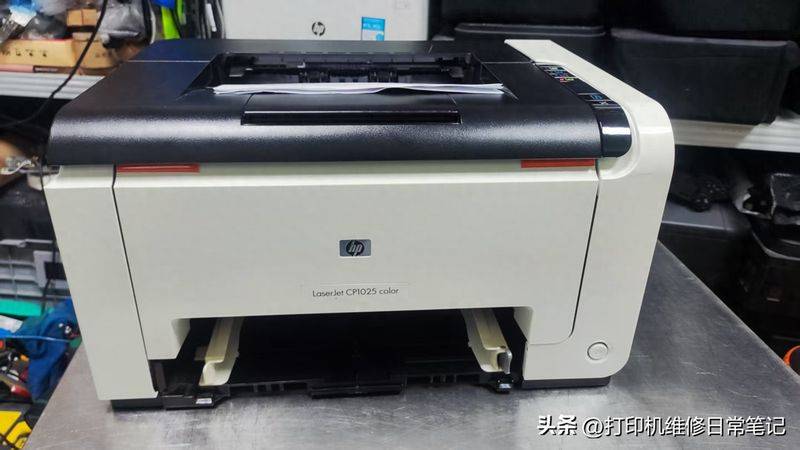

One hp1025 colour printer is being maintained today, and there is a problem of text loss and colour bias when user feedback devices are printed. This type of malfunction is a classic type of machine type hp 1025, 176, 177, which is particularly high after the equipment has been used for a long time。
First, an electrical tester is performed to confirm that the failure is consistent with the user's feedback: the print document is partially missing and the colour file is not only colour-incorrect, but also the print-in-the-striped. Following screening, routine materials, such as selenium drums, powder boxes, etc., were removed and were initially determined to have been the result of abnormal work on internal movement components of the equipment。

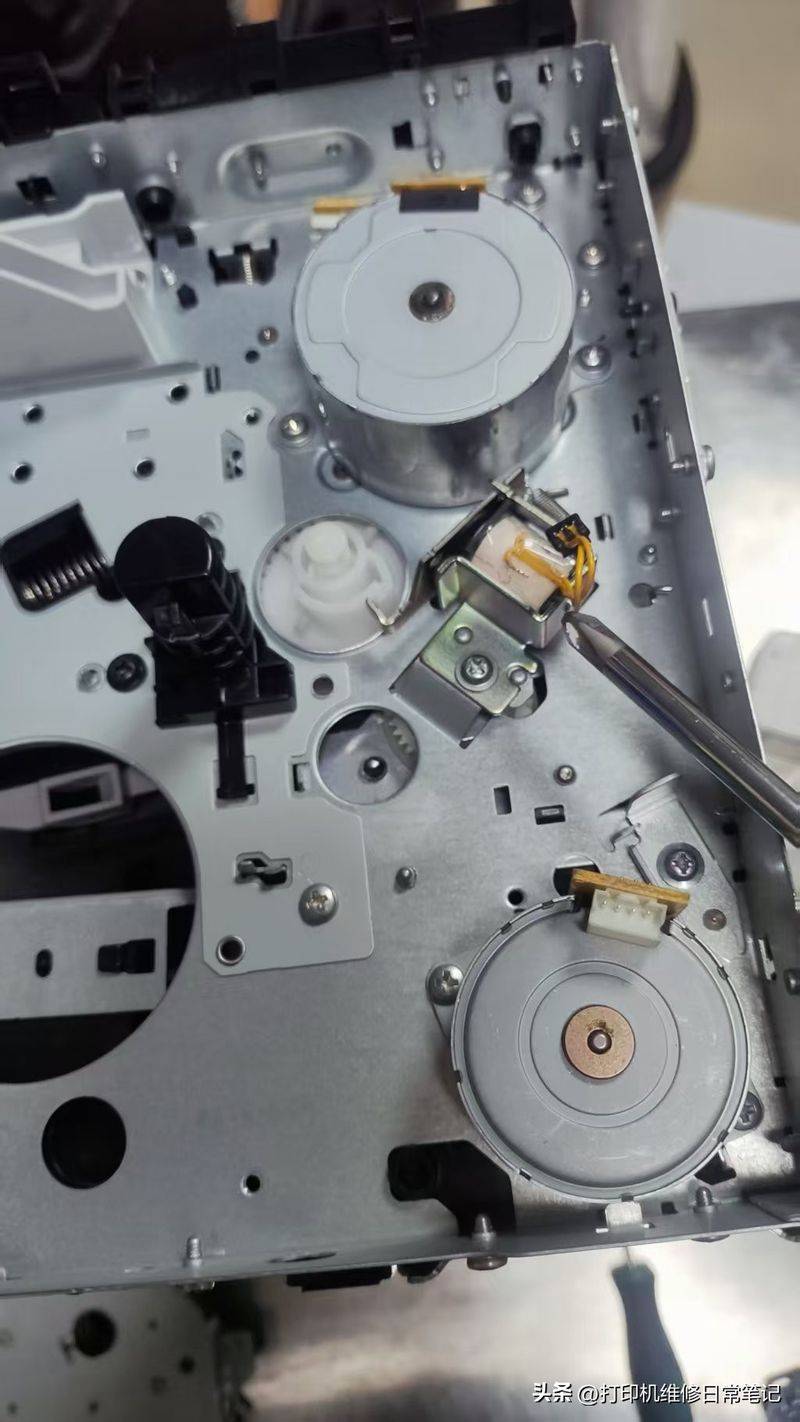

This was followed by a dismantling exercise, in which the power supply of the equipment was disconnected prior to operation and maintenance safety was fully secured. Dismantling the machine's right-hand covers and then removing the main drive component clearly shows the clutch that controls the transprint operation. After careful examination, the source of the failure was determined: the sponges on the clutch were chronically affected by the high temperature of the operation of the equipment, gradually aging, hardening and adhesively attached, completely losing their original elasticity, directly leading to the failure of the clutching function, the inability to accurately control the trans-print band's unseasonal rhythm, and the disruption of the trans-printing process, which eventually led to print failures such as text loss, colour anomalies, etc。
Once the problem has been identified, the targeted repairs are carried out immediately: first, the old sponge residue on the clutch is thoroughly scraped with specialized tools, the surface of the component is cleaned up to ensure that there are no debris residues; then, the fully new specialized sponges, which are fit in size, are fine-tuned and pasted at the appropriate position of the clutch, restoring their partition buffer capacity。
Upon completion of the repairs, the main drive component, the right side panel, is then loaded back in the reverse step of the dismantling machine, and the screws are tightened to ensure that the components are installed. The final transmission was tested multiple times, black and white, coloured documents were printed clearly, missing text was fully visible, colours were reduced to accurate and print-out precision, all malfunctions were completely resolved and printers were returned to full operational status。
