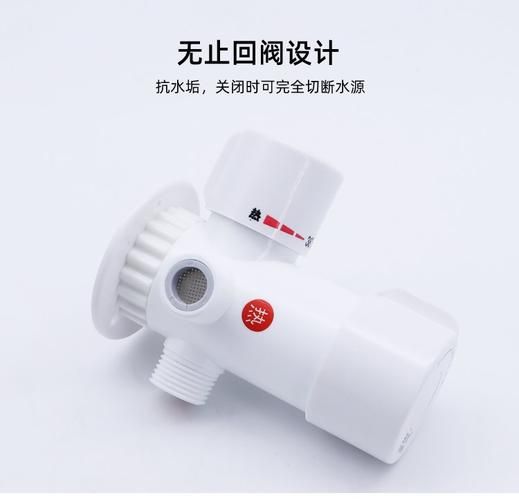

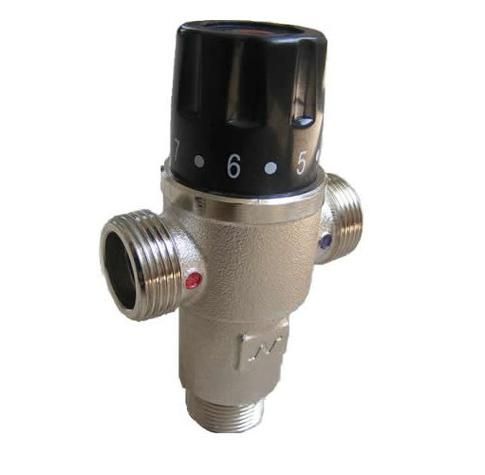

Warming valve-heating water valve proxy wholesale, hot water
Product use
The thermostat valves are a complementary product developed by my company for thermal water system and are widely used in electric water heaters, solar water heaters and centralized water heating systems. It can also be applied to electric water heaters and solar water heaters, where users can adjust their own temperature for cold and hot water, as needed, which can be achieved and stabilized quickly, ensuring that water temperature is constant and free from changes in water temperature, flow and water pressure, and addressing the temperature and heat of bathing centres, which can automatically shut down hot water within seconds of interruption。

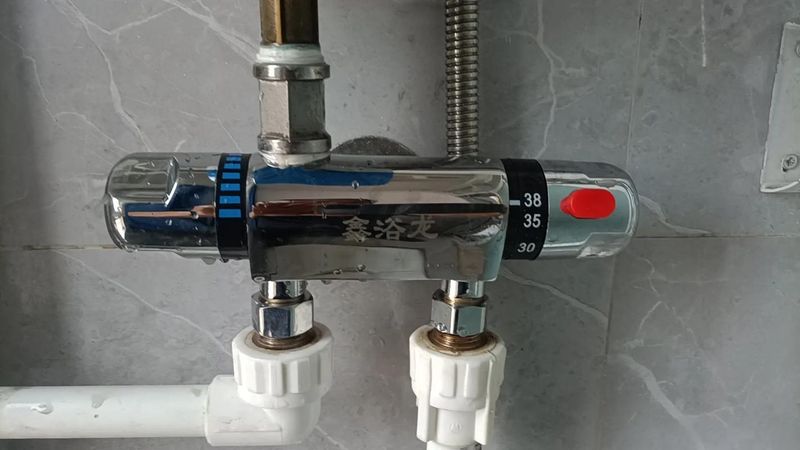

Rationale
At the mixing point of the heating water valve, there is a heat-sensitive element that uses the properties of the temperature original to drive the core of the valve to move, seal or open cold, hot water entry。
When cold water is blocked and hot water is activated, the temperature adjusts the temperature of the spin buttons, and the temperature of cold and hot water entering the vent changes regardless of the temperature or pressure of the temperature, so that the temperature of the water coming into the vent remains constant and the temperature of the heat buttons can be set at any time within the specified temperature of the product, and the temperature of the temperature mixing valves will automatically maintain the water temperature。
Main technical parameters
Work pressure: 0. 03-1mpa
Optimal work pressure: 0. 1-0. 5 mpa
Cold water temperature: 5-29 degrees
Hot water temperature: 50-95 degrees
**high temperature of water: < 95 degrees
Temperature range: 35-45 degrees
Temperature accuracy: ±2 degrees
Port flow: 0. 7 tonnes/h (pressure variance 0. 1 mpa)
Path: dn15-100
Installation and attention
The red mark is hot water imports. The blue tag is cold water imports。
2. After setting the temperature, if the temperature or pressure of the water supply changes, the output temperature is +2 degrees。
3. If cold and hot water pressure is not consistent, a one-way stop valve should be added to the intake to prevent cold and hot water interlocking。
4. If the cold, hot water pressure ratio is greater than the pressure, the pressure-restriction valve should be installed on the side of the pressure to ensure normal regulation of the mixed water valve。
5. When selecting and installing, note whether the requirements of a generic pressure, water mixing temperature range, etc. Are consistent with product parameters。
Use and debug notes
1. Debugger temperature shall open the discharge flow to ** large。
2. The control buttons are in the direction of cooling and the reverse is in the direction of heating, and the initial reconciliation is to be noted in the direction of cooling to high temperature in order to prevent burns. Warming valve-heating water valve proxy wholesale, hot water
Double-barrel filtration kf - lubricating hydraulic filter, oil double-barrel filter, lubricants station filter
Product type: kf;
(b) form of connection: options for standard tube connections to frank, screws, welding, etc.;
Driver: autowork;
Structure: consisting of cartridges, drums, filter cores, exhaust valves, switch valves, telegrapher pressure differential switches, etc.;
Filter advantages: precision, efficient filtering, pressurized filtering
Application media: oils of all types, such as lubricants, hydraulic fluids, weak corrosivity, cryogenics psst.
Seal structure: national markers, butyl fluoride/pve/metal pads;
Core filtering materials: stainless steel, fibers, etc.
Filter accuracy: 5-120um optional
(b) pressure-down loss: <0. 03-0. 1 bar
Common diameter dn(mm): dn15-300;
Pressure range: 0. 2 mpa-16mpa;
Main material: aluminium alloy, found steel cs, carbon steel 20#, stainless steel 304/316l, etc.;
Optional series: standard, long and large
(a) branding: shanghai pu-sho;
(a) modus operandi: the introduction of new processes and efficient work
Basic description: manufactured by the manufacturer to meet different process needs, meet industry standards and be widely applied
(a) product characteristics: scientific currents of water making, good materials and scientific and technological awareness
(a) scope of application: petrochemicals, metal metallurgy, urban irrigation, etc.
Test certification: industry standard certification to meet ministry of machinery's standard requirements
Packaging instructions: wooden wooden trunks that meet different transport needs
After-sale services: improved after-sale network and timely follow-up
Summary of model specifications: kf-25ax*/y, kf-32ax*/y
Kf-40ax*/y, kf-40bx*/y
Kf-50ax*/y, kf-50bx*/y
Kf-80ax*/y, kf-80bx*/y
Kf-100ax*/y, kf-100bx*/y
Kf-125ax*/y, kf-125bx*/y
Kf-150ax*/y, kf-150bx*/y, kf-150cx*/y
Kf-200ax*/y, kf-200bx*/y, kf-200cx*/y
Kf-250ax*/y, kf-250bx*/y, kf-250cx*/y
Kf-300ax*/y, kf-300bx*/y, kf-300cx*/y
Product description:
The kf-type double-barrel filter, which is a new and efficient product developed by my company, applies to oil equipment and lubricating oil stations in the petroleum, chemical, metallurgical, nuclear, heavy, electrical and ship industries, provides efficient filtering of impurities in separate oils, has the advantage of high filter accuracy, zero leakage, automatic transceivers, replacement maintenance, etc., and is based on a single stainless steel or fibre design, which can be produced as required, while meeting various high-standard conditions, and welcomes the offer of advice in connection with shanghai baylors limited, which will provide you with easy and easy professional services and supplies。
Sdspm22-ab-g24/kd35 series, wandfluh, switzerland fire
Product name: no leaking bottom valve, plugged valve, return to the valve
Product branding: wandfluh, switzerland
Model: sdsm22-ab-g24/kd35
Method of action: electromagnetic
Common diameter: dn55(mm)
Connection form: screw
Working temperature: 80 °c
Applicable media: oil
Use pressure: 24 (mpa)
The following are the types of the wandfluh marvellum valves:
Sdsm22-ab-g24/kd35 sdsm22-ab-g12/kd35
Sdsm22-ab-r110/md35 sdsm22-ab-r220/md35
Sdsm22-ba-g24/kd35 sdsm22-ba-g12/kd35
Sdsm22-ba-r110/md35 sdsm22-ba-r220/md35
Sdsm22-fg-g24/kd35 sdsm22-fg12/kd35
Sdsm22-fg-r110/md35 sdsm22-fg-r220/md35
One of the internationally ** hydraulic components and their electronic control component production plants is the wandfluhydaalics+electronics. Founded in 1946 and is 53 years old. Iso-901 quality certification obtained in 1994. The current quality criterion for the upper ranking is qs-9000. It originates from the fact that u. S. Auto industry manufacturers set higher standards for management, quality monitoring, process monitoring, and access to an ever-increasing system, in accordance with the accepted iso-9001 standards, and are therefore the current high quality certification standards。
The following are the main products of wandfluh:
Wandfluh direction control valve: slide valve no leak valve pressure valve high voltage ball valve medium ball valve flow control valve one-way valve 2-to-plug valve
Wandfluh scale valve: ratio to scale valve proportional pressure valve proportional flow control valve
Mandfluh controller: scale amplifier
Wandfluh transport: hydraulic transfer
Wandfluhatex - explosive device: atex - explosive valve atex emp
The long-term preferential supply of shanghai butterflies is: butterfly valves, electromagnetic valves, drainage resistance, oil drainage valves, respirators, firearms, filters, hydraulic product pumps, valves, docks, seals, oil tanks, motors, etc. Sdspm22-ab-g24/kd35 series, wandfluh, switzerland fire
