A lot of people don't weigh steel, so save the article。

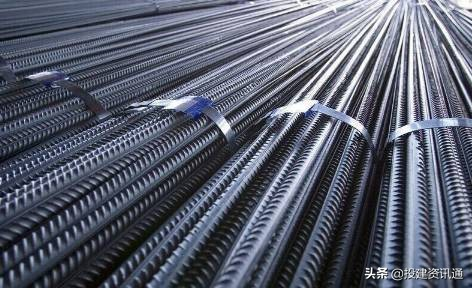

Thread steel weight formula
Formula: mm x mm x 0. 00617 x lengthm in diameter
Example: screwdriver 20mm (diameter) x 12m (long)
Calculate: 20x20x0. 00617x12=29. 616kg

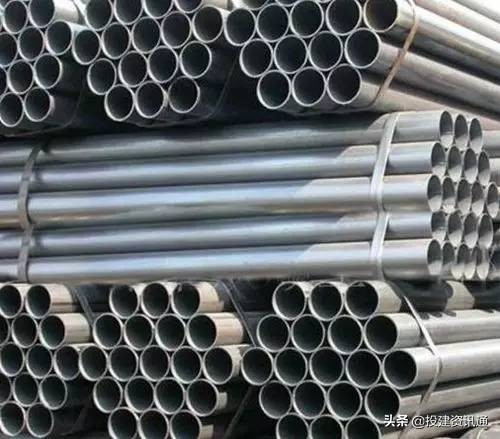

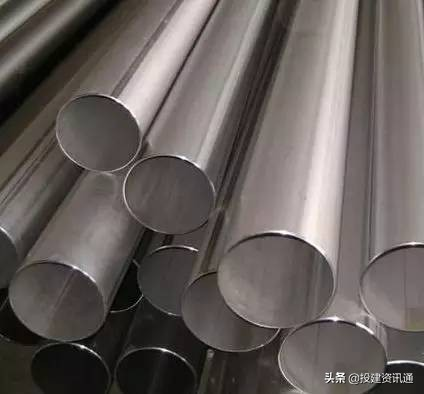

A formula for the weight calculation of steel pipes
Formula: (exterior - wall thickness) x wall thickness mm x 0. 02466 x length m
Example: pipe 114mm (exterior) x 4mm (wall thickness) x 6m (long)
Calculate: (114-4) 4x0. 02466x6=65. 102kg
Round steel weight formula
Formula: mm x mm x 0. 00617 x lengthm in diameter
Example: round steel 20 mm in diameter x 6 m in length
Calculate: 20x20x0. 00617x6=14. 808kg

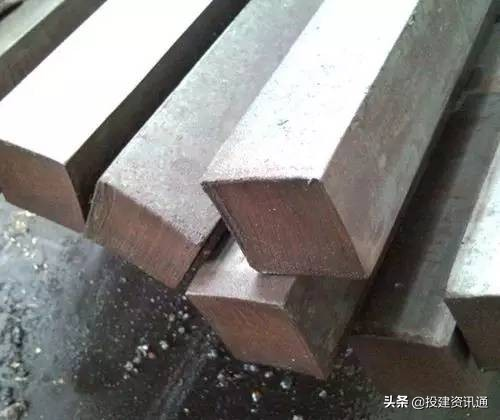

Square steel weight formula
Formula: edge width (mm) x edge width (mm) x length (m) x 0. 00785
Example: square steel 50 mm (marine width) x 6 m (long)
Calculate: 50x50x6x0. 00785 = 117. 75 (kg)

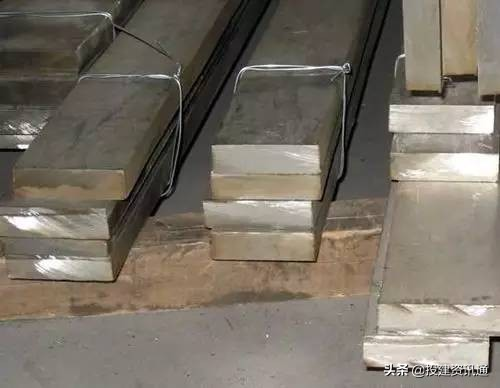

A flat steel weight formula
Formula: edge width (mm) x thickness (mm) x length (m) x 0. 00785
Example: flat steel 50 mm (marine width) x 5. 0 mm ( thick) x 6 m (long)
Calculate: 50x5x6x0. 00785 =11. 7. 75 (kg)
Hexagon steel weight formula
Formula: border diameter x border diameter x length (m) x 0. 00068
Example: hexagon steel 50 mm (diameter) x 6 m (long)
Calculate: 50 x 50 x 6 x 0. 0068 = 102 (kg)

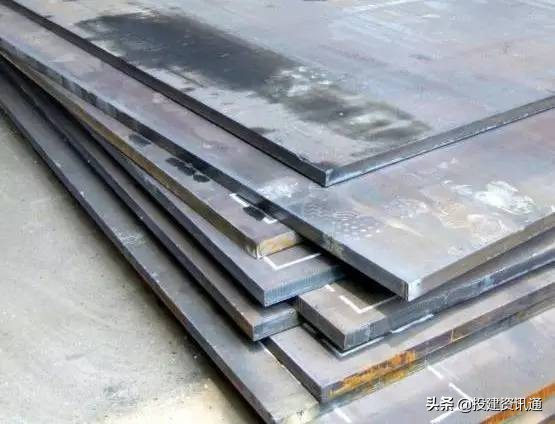

Steel plate weight formula
Formula: 7. 85 x length (m) x width (m) x thickness (mm)
Example: steel plate 6 m (long) x 1. 51 m (wide) x 9. 75 mm (heavy)
Calculate: 7. 85 x 6 x 1. 51 x 9. 75 = 69. 43 kg
A flat weight formula
Formula: (long + wide) x 2 x thick x 0. 00785 x long m
Example: flat pass 100 mm x 50 mm x 5 mm thick x 6 m long
Calculate: (100+50) x 2 x 5 x 0. 00785 x 6 = 70. 65 kg
Cubic weight formula
Formula: edge width x 4 x thick x 0. 00785 x long m
Example: quantum 50 mm x 5 mm thick x 6 m long
Calculate: 50x4x5x0. 00785x6=47. 1kg

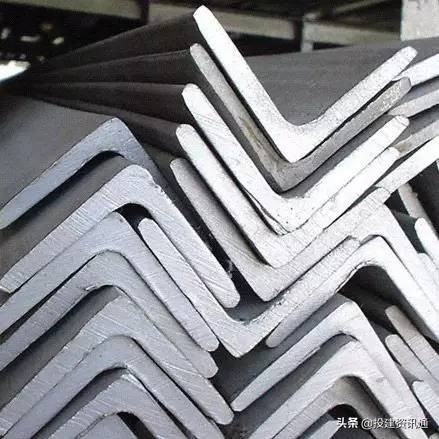

Equivalent steel weight formula
Formula: edge width x mm x thick x 0. 05 x long m (bold)
Example: angular steel 50 mm x 50 mm x 5 mm x 6 m long
Calculate: 50x5x0. 015x6 = 22. 5 kg (table 22. 62)
The formula that does not equal the edge steel weight calculation
Formula: (side width + width) x thickness x 0. 0076 x length m (bold)
Example: angular steel 100 mm x 80 mm x 8 mm x 6 m (long)
Calculated: (100+80) x 8 x 0. 0076 x 6 = 65. 67 kg (table 65. 676)
Other non-ferrous metals
Bronze weight formula
Formula: (exterior -- wall thickness) x thickness x 0. 0267 x long m
Example: bronze tube 20 mm x 1. 5 mm thick x 6 m long
Calculate: (20-1. 5) x 1. 5 x 0. 0267 x 6 = 4. 446 kg
Bronze weight formula
Formula: (exterior -- wall thickness) x thickness x 0. 02796 x length m
Example: copper tube 20 mm x 1. 5 mm thick x 6 m long
Calculate: (20-1. 5) x 1. 5 x 0. 02796 x 6 = 4. 655 kg
Aluminium plate weight formula
Formula: mx width x mmx2. 96
Example: aluminium plate 1 m wide x 3 m long x 2. 5 mm thick
Calculation: 1 x 3 x 2. 5 x 2. 96 = 22. 2 kg
Bronze: 8. 5%
Bronze: 8. 9%
Zinc plates: 7. 2
Lead boards: 11. 37
Calculated: size x thickness = weight per square
