Audit expert: joon-soo lee
Director of the sandong institute for lockings
With regard to the country's first master craftsman, there should be a lot of people who think first of all about luban. His life has been marked by many innovations that facilitate people's lives. Of these, the institutionalization of doors was also the first thing he thought of, so that a real lock was created. The lock then worked on two plate springs, a similar spring structure that was still in use today。
Just as it is difficult for us to say whether the spears and shields are stronger or better, the blame for the keys and the locks is always overwhelming: on the one hand, we want the locks to be more sophisticated and safer, and, on the other hand, when the keys are sometimes forgotten or lost, we hope that the lock-opener will quickly open the door。
Today, together, let's increase our knowledge of how key and tool locks work, see how they kill each other and fight each other。
The evolution of the lock
It has been about 3,000 years since the emergence of the first wooden locks, locked in our long history, in our culture of hierarchy; by the time of the east han era, the trichronic locks of iron production were widespread and had been used in our country for over 1,000 years。
In the middle of the nineteenth century, the americans invented the bomb lock, which was the most widely applied lock, with the first bullet lock being a one-way structure, evolving in two-way and multi-way direction, and now producing millions of different types of bomb-forming combination locks, greatly enhancing its safety。
Apart from wooden and bullet locks, there are cam locks, pole locks and wheel locks, which are mechanical locks。

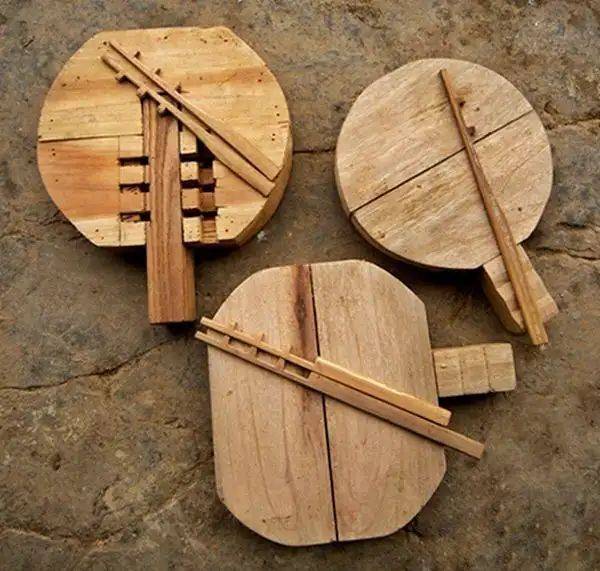

The ancient wood locks and the corresponding key structure
Since the late twentieth century, with the development of science and technology, new types of locks, such as ultrasound, infrared, electromagnetic wave locks, fingerprint locks and retina locks, have emerged. They require not only the right key to open them, but also the right information, such as soundwaves, electromagnetic waves, images and fingerprints, as passwords, with a higher degree of confidentiality than traditional mechanical locks。
In short, in modern societies, small locks remain essential tools for life, protecting the lives and property of ordinary people and contributing to the stability of society。

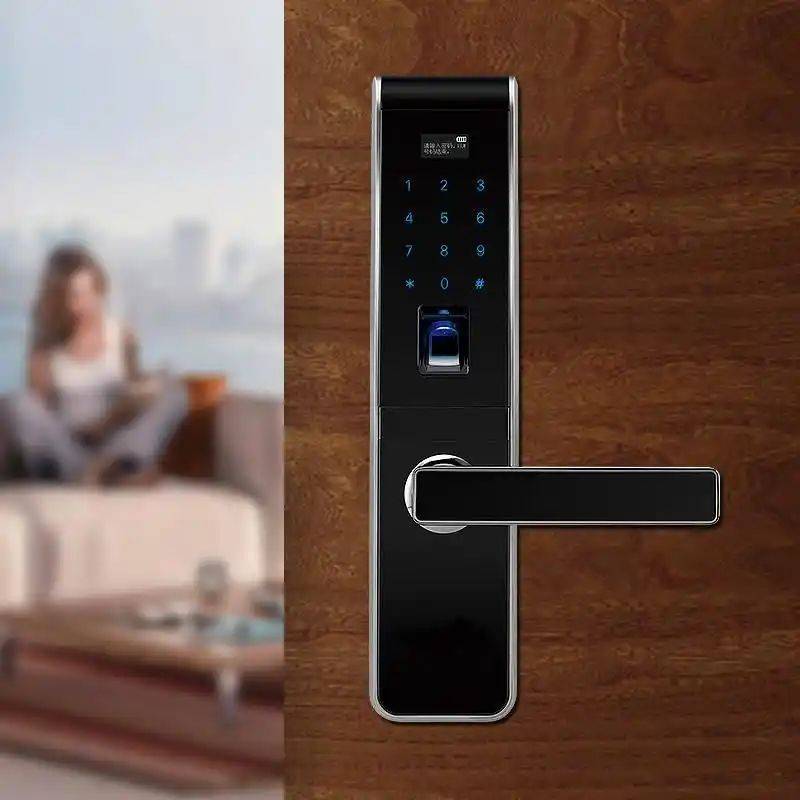

Smart locks with passwords and fingerprint unlocks
How did the key lock
Take the most common bullet lock structure in life, for example, and let's look at how the key actually opens it。
Usually, we insert the key into the lock, and then rotate it at a certain angle, and it opens the door more easily, but what happens inside the lock when we do a simple re-key move
The bullet lock is usually a barrel structure, and the outer lock core is a fixed part of the outside lock, inside which the inner cylinder lock core can be rotated。
In general, there are several upper and lower bullets of metal in the inner lock core, which are pressed into the inner lock core under the power of the spring in the outer lock core. Only when a matching key has been inserted, the bullet is pushed through the key cog, and the lock is stopped at the position of the cut wire (also called the cut point), at which point the lock core is no longer stuck; the key-led lock core rotates, which leaves the lock beam unblocked and starts and locks are unlocked; then the key is pulled back to the initial position as the lock core rotates, the key is pulled out, the bullet is dropped again and the lock core is unable to move。

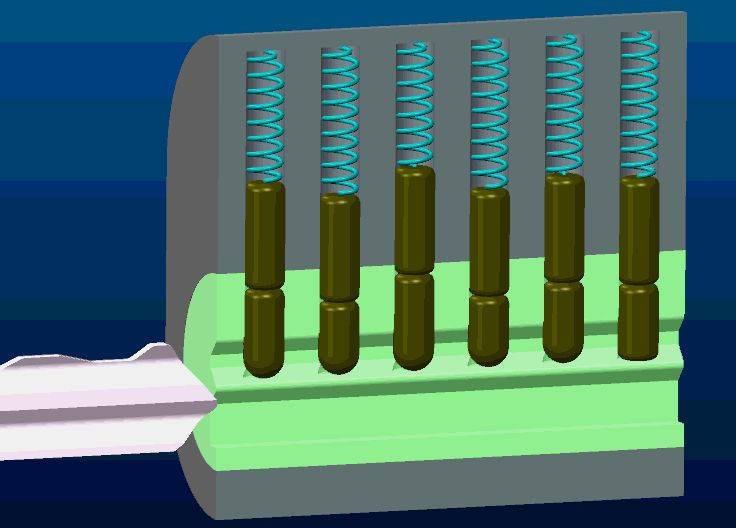

Key-opening diagram, source network
In addition to the bullet locks, other mechanical locks, such as cam locks, pole locks, etc., are more common。
The cam lock, which originated in ancient rome, is still visible in some simple backpacks, with a cam barrier inside the cam lock that only the right key can pass through the blank shape of the key, without the cam having successfully turned the lock open, which is relatively less difficult and less secure。

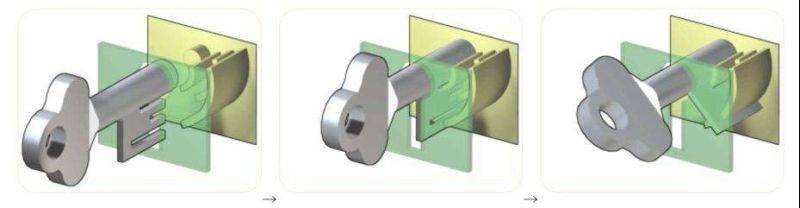

Cam lock opens the theory: the yellow part is cam, the key matches the cam shape to unlock it
