The gas steam boilers produced by east gwanging boilers limited are of good quality and quality. 1. Knowledge of drawings and technical documents
2. Examination of the quantity and quality of fire-resistant materials, thermostats and other building materials in accordance with drawing standards。
3. Calibration and modification of the sizes associated with the builder (e. G. Body, utility, relative size of air preheaters, steel racks, verticality of membrane cold wall troughs, spacing of pipes, etc.)。
4. Check whether the pre-construction conditions have been met (water pressure test completed, various temporary stubs removed, etc.)。

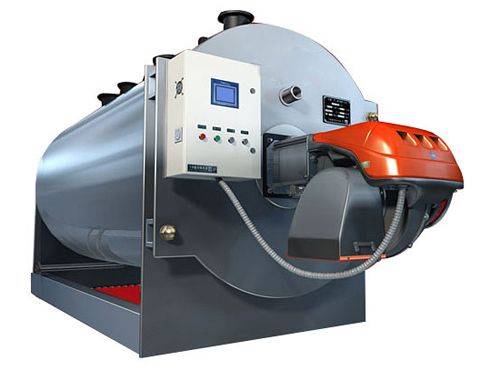

Gas boilers:
The boiler's head sprays a mixed gas into the boiler's chamber, and the gas filled with a mixed gas in the furnace is ignited by a ignition device on the burner's head. The effect of heating the boiler's gallons and tubes. If a good boiler is available, multi-curve combustion chambers are designed to increase the flow of burning gases within the furnace, which will increase the heat efficiency. The key to the gas boiler is the head of the combustion, allowing gas and air to mix up to a certain percentage before fuel can be better burned。
The flue gas in the furnaces of gas boilers transfers heat to the water cold wall in a radioactive manner, half-radio, half-reciprocal to screen superheaters in the export of the gas in the furnaces, and in the horizontal flue and tail flue flow to heaters, reheaters, gas-saving and air heaters. As a result, the boiler gives water through the water-saving coal, water-cooled, overheated steam and reheated steam from the gas turbine high-pressure tank。
The above overview of the working principles of the gas boilers helps us to understand the working principles while using the gas boilers, thereby helping to maintain, maintain and so on. Attention should be drawn to the fact that gas boilers use a large amount of gas and are overheat-protected when water pressure is insufficient and not suitable for areas with severe wind conditions。
Overview of boiler body structure
(i) three-way structure
Fuels are nuanced and burned inside the oven, high-temperature flue gas follows the oven urchins back into the combustion chamber and enters the first flue pipe beam, turns 180 degrees into the second cavity by the pressure-like pre-smoke box, and drains into the atmosphere by switching heat。
Using the design idea of a three-way structure symmetrically at the centre, we designed a three-way steam boiler with a large capacity. The greatest characteristics of this boiler: all pressured elements are symmetrically symmetrically symmetrically with the centre of the boiler, and the boiler is equipped with a fully wet back structure, with a large inner cylinder and a eccentric fire box structure, which facilitates the provision of sufficient radiation heat. The currents are regulated by a second and a third back. The front panel of the returning chamber is connected to the oven and the rear panel of the returning room is covered by an elliptical seal and tube plate. The second and third turn-around chambers constitute the front-box, where smoke temperatures are below 500 °c. Therefore, the structure of the front case uses light-shaped fire-resistant temperature-resistant materials. The latter shall be placed in the direction of the cylinder axis, not only to reduce the length of the furnace, but also to prevent the chimney from being placed in the direction of the cylinder axis vertically, and to cool the condensed boiler itself when the boiler starts to stop. The design of such boilers takes into account the principles of boiler overhaul and stabilization. The water mixer installed in the boiler's backwater imports, which washes out the pipes before touching the stove's urchins, increases the temperature of the refill's urchins. The local phenomenon of cold boiling was avoided. The boiler water is in the lower layers of the high-temperature-burning fume, and the low temperatures flow in the upper part ... The best structural design has been achieved for heat-to-flow. The steam boiler also reaches maximum vapour space, with subsequent partitions resulting in the circulation of water through the high-temperature surface of the rekindling chamber, so that the heat is reasonably evenly spread。
