In the area of electronic manufacturing, smt, dip and pcba are three often mentioned but easily confused underlying concepts. For engineers, entrepreneurs or purchasers who have recently come into contact with hardware development, clarifying their respective definitions, process characteristics and interrelationships is a prerequisite for efficient project advancement and accurate communication needs. 1943 technology will help you quickly to understand the core of these three terms in clear and common language, avoiding common error zones。
More smt/pcba processing information is welcome to visit the network of science and technology company officials at https://www. 1943pcba. Com
What is smt? — main processes in modern electronic manufacturing

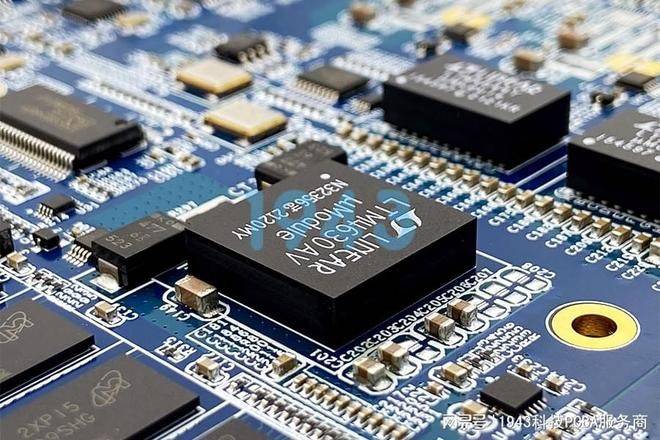

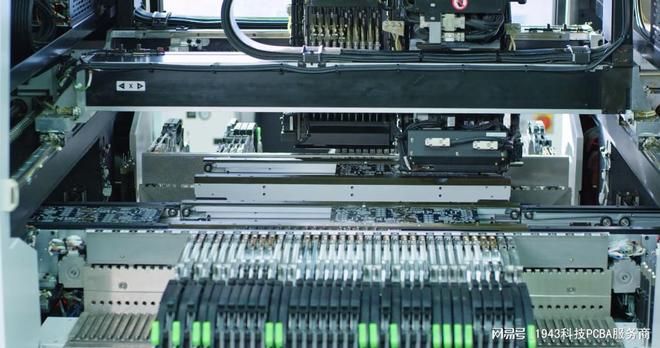

Smt, known as surface mount technology, is currently the most widely used process in electronic assembly. It completes the electrical connection by placing the pieces directly on the surface of the printed circuit board (pcb) and then re-welding, without the need to pierce the plate。

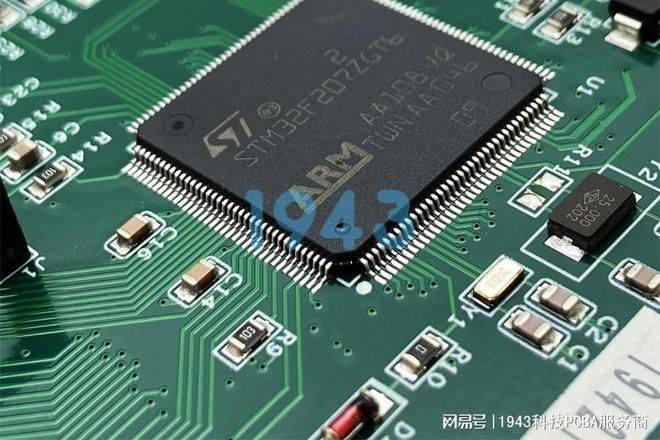

Smt is usually used in small quantities, such as the usual 0402, 0603 enveloped electrical resistance, and integrated circuits such as qfp, bga, etc. Such elements are not traditionally induced but are directly connected to the pcb surface through welding. Smt has become the preferred process for high-intensity products such as smart phones, smart wear equipment, communication modules and so forth, because of its high automation, high-density clothing and high-speed production characteristics。
What is a dip? — the traditional plugin process is still useful
Dip, originally referred to as the dual in-line package (two rows of direct plug-in), but in the actual production context it is also often used to refer to the general hole plugin process (through-hole technology). This process requires that the induced foot of a metaware pass through the hole on the pcb and weld it from the back of the plate。
The dip metaware, which is usually larger in size and long in size, attracts long feet, has greater mechanical strength and resistance to vibration and is suitable for scenarios that require higher reliability. For example, transformers in power modules, large-capacity electrolytic capacitors, some relays and connectors are still widely installed using the dip approach. Although the dip process is less automated and less productive than smt, it is not a substitute for specific applications。
It is important to note that the dip is both an encapsulation and a assembly process, which should be accurately understood in the context of communication。
What is the pcba

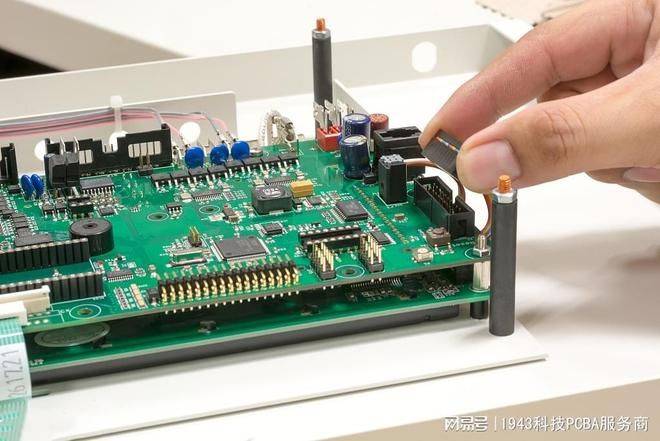

The pcba, or the printicuit board assembly (printing circuit board assembly), is not a single process, but rather the installation of a metaware on the pcb by smt, dip or other means, and the completion of subsequent processes such as testing, testing, assembly, etc., resulting in a circuit board with complete electrical functionality。
In other words, pcb is an "empty board" that does not have any metaware, while pcba is a "wired circuit board with all the parts and power to work". The process of achieving the pcba usually includes smt stickers, dip plugins, welding and bottling, automated optical testing (aoi) and functional testing (fct). Therefore, smt and dip are the two core process instruments that make up the pcba and are often used together on the same board。
How do you understand the relationship
It's an analogy:
Smt is responsible for the installation of light, dense surface elements, and dip is responsible for the installation of high-reliability perforation components, both of which together serve the ultimate realization of pcba. The vast majority of modern electronic products use a combination of processes “based on smt and supported by dip”, balancing performance, cost and stability。
Common error zone clarification
A lot of people mistakenly think that "pcba is smt," but it's not. Smt is only one link in the pcba manufacturing process and many products still require a dip plugin to complete their full functionality。
It was also argued that the “dip process is outdated”, which is equally inaccurate. Dip remains important because of its robustness and heat dispersion advantage in industrial control, power systems and high power equipment。
The view was also expressed that “all metaware can be used as smts”, but in reality, some connectors, radiators, large-scale electrolytics, etc., must still be installed in a contours mode because of structural or electrical needs。
Concluding remarks
The mastery of basic concepts and differences between smt, dip and pcba is a key step towards electronic manufacturing. A clear understanding of these terms, whether you are a product designer, project manager or supply chain decision maker, can be more professional and efficient in bom's development, process selection and plant interface。
