Hello, i'm a small town and i bring you up to date every day, and i don't want to catch up with the rhythm and the content, but i've got all the dry stuff. If it's good, just give me a little encouragement
Last month, i followed the staff of this geological station to inspect the construction of the new commercial house and encountered two types of household that were closing doors and windows. The first set of construction drawings saved the workers from filling their window frames with bubbles, while the outer side simply covered the glitter; the second set covered the entire gap with concrete sand. Qualitative engineers at the scene stated that all the works had been irregular and demanded that they be removed. The engineers talked to me and now, regardless of the receipt and inspection of the goods room or the supervision of the door and window, the latest standards of stitching are being strictly enforced, and the old practice of making a fool out of the way. A number of the owners did not keep a close eye on the process, entered windows for two to three years with water permeating, wall skins falling off, window frames rusted, and returned to repair and repair for 2,000 less, and had to break the perimeter wall, which took time and money。
I have taken the lead in preparing all official documents of the ministry of construction and construction for the national marking programme for the " seam-filled slurry for building doors and windows " , gb50210-2018 " standards for the quality of architecturing and decoration works " , jgj214-2010 " technical instructions for the engineering of aluminium alloyed gates and windows " , gb55030-2022 " general guidelines for water protection in construction and municipal works " , in conjunction with the regulations for the implementation of landfall in the multi-land construction sector throughout the country " , using our usual language to make it clear that the defects of a single material, the structure of compliance, the steps of construction, and the elements of the inspection and inspection are clear that all normative texts, material standards can be verified in the ministry of construction network, the engineering standard platform " , and that they are authentic and not exaggerated。
First, understand: why only bubbles, ordinary cement stitches are banned by the new regulations
Over the years, domestic clothing and construction have been involved in blowing up bubbles and cement, both of which have short panels, and are unable to perform the full function of window frame filling, waterproofing, weight bearing and anti-formation alone, which is the central reason for the ministry's unified regulations。
One, a single polyurethane blowing agent. Three hard wounds can't be solved
The blowing agent is the most commonly used suture-filled material in the home, has a high expansion capacity, fills an irregular gap and has a good soundproofing effect, but the short plate is particularly prominent。
First, structural strength is inadequate and heavy capacity is poor. The blowing agent, which is a poignant flexible material, endures long periods of self-heaviness of the window frame, shock of the switch window, slowly shrinks, collapses, breaks in layers, slight shaking of the window frame and re-opens the gap。
Second, it is extremely resistant and prone to water ageing. There are large micro-pores inside the blowing agent, and when the water penetrates into it, the winter cold ice swells, the summer high temperature softens, the three or five years of cracking, the waterproofing directly fails, and the rain pours into the room following the cracks。
And third, there's no hard support. The bottom of the window frame requires pressure, the blowing agent is pressured for long-term compression and deformation, the window table is prone to sinking and cracking, the southern typhoon-prone area, and the window with a single blowing agent is less resistant to wind pressure。
2. Single-use cement slurry sews, with four hazards chronically troubled households
Many of the old remodels are used to sewing with cement and feel strong, while the pits are deep。
First, thermal swelling and cooling coefficients do not match and are bound to crack. Metal window frames, wall concrete and concrete sand slurry have different elasticity rates, with temperature changes over the four seasons of the year, cracks between concrete and window frames and walls, and water infiltration through cracks。
Second, alkaline corrosive aluminium alloys, broken bridge aluminium window frames. Normal cement slurry is very alkaline, with long-term exposure to aluminium-type materials, corrosive window frame surface paints, oxidizing materials and reducing the useful life of doors and windows。
Third, there's no elasticity, no seismic sound. The windows of the switch were shaken, the buildings were slightly sunk, the rigid structures of the cement were not buffered and the cracks would continue to expand, leaking and soundproofing。
And fourth, it's hard to keep the gap in order. Artificial filling of cement slurry is prone to internal empty drums, the external surface is seen to be filled, the internal cavities are available and it is difficult to screen leakage points after water is accumulated。
Additional distinction: general cement slurry for water-resistant slurry
The new regulations allow the partial use of water-resistant slurry for polymers in doors and windows, rather than the bulking of ordinary cement sand. Waterproof slurry adds waterproofing aids, soft modified materials, which are significantly less alkaline, have microscaling capacity, do not corrosive window frames, and are resistant to cracking, and are nothing like building materials in ordinary cement。
Ii. The ministry's clear compliance system: tiered construction is the only way to achieve the sandwich structure
In conjunction with the state regulation, the multi-geotechnical acceptance guidelines, the sub-regional filling of window frames with sealed glue, specialized sewn slurry, the formation of the three layers of bottom support, intermediate buffers, surface sealing, and the only construction programme that currently allows for the clear division of material through official acceptances。
1. Bottom of the window frame + lower 200 mm range on both sides: specially designed polymer waterproof sewn slurry filling
This is a critical area of stress, with windows that are long-term pressurized and easy to accumulate and must be supported by rigid waterproof sand。
1. Effects: solid window frames, self-regarding of doors and windows, protection against water immersion of windowsills, and protection from the break-up of windowsills
2. Construction requirements: filling of compact empty drums, contact positions for sand and window frames, pre-composed coating of aluminium materials to avoid alkaline corrosion
3. Applicable scenery: all external windows, balconies at the bottom of doors and windows, uniform implementation in the north and south, and typhoon areas require appropriate increase in the number of slurry。
2 upside of window frame, remaining area on top: closed-pore polyurethane blowing agent filling
There is no heavy pressure on the upper part, which requires flexible buffers, temperature insulation and the use of qualified closed-hole blowing agents。
1. Effects: filling gaps, temperature insulation, buffer transformation, absorbing small shifts in walls, window frames and avoiding rigid cracking
2. Construction specifications: the sutures are full of fillings, only extra bumps are removed after solidification, large areas of bubbles are prohibited from being cut to prevent damage to sealed structures
3. Material requirements: building-specific blowing agent that meets the jc/t 482 standard must be selected and low-priced open-hole foams must be rejected。
3 outdoor, indoor surface: two impregnable seal seals sealed, one of which is not possible
Whether the bottom is slurry or the upper foaming agent, the suture surface must be sealed, which is the last waterproof line and is a compulsory acceptance。
1. On the outdoor side: opting for neutral silicone resistant sealing, uv-resistant, rain-resistant, 6 to 10 mm wide, deep and uninterrupted
2. Indoor side: neutral silicone anti-accumulator seal, anti-tide anti-fouling, taking into account the beauty of the mouth
3. Rigid requirements: foaming agents, slurry are strictly prohibited from being exposed directly, all of which are closed by sealing tape, blocking water infiltration。

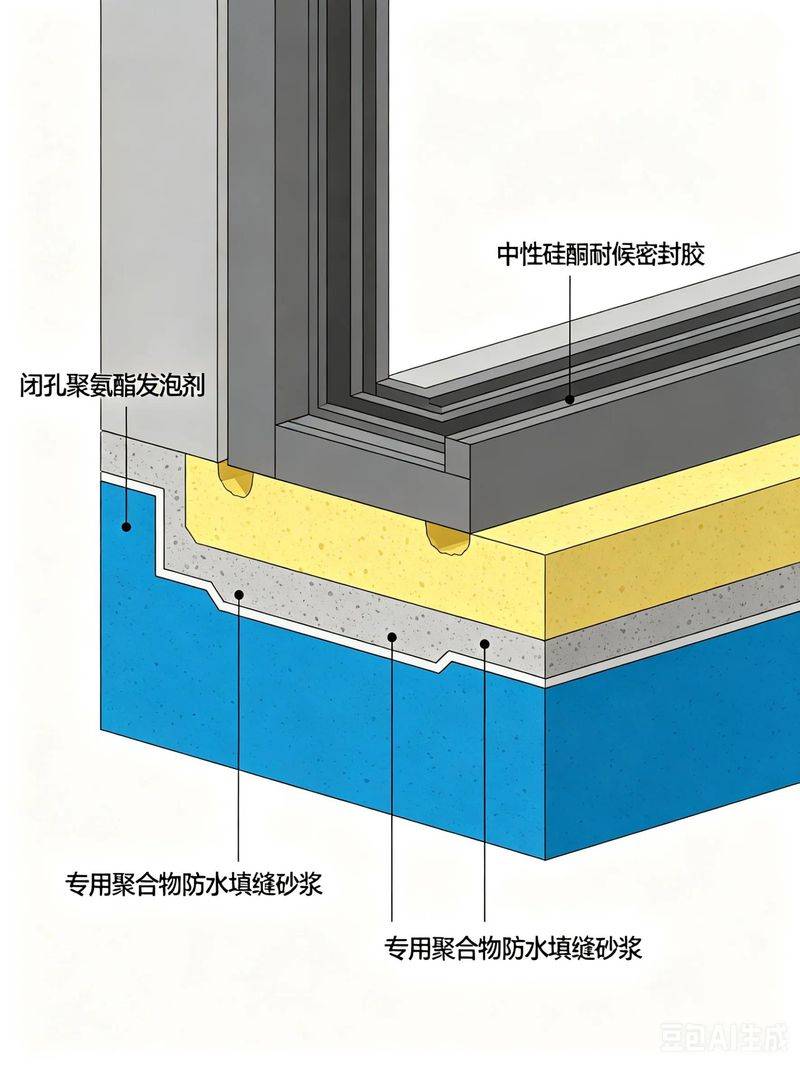

Summary of overall compliance structure (at first glance)
200 mm below window frame + side: specialized waterproof sew slurry (hard load)
Window frames up and above: qualified closed hole blowing agent (flexible buffer)
Internal and external surface layer: neutral resistant seal + anti-mony seal (waterproof edge)
The combination, which combines strength, elasticity, water resistance, preservation, perfect avoidance of all defects in single-use blowing agents, cement and fully meets the new requirements of the ministry。
Iii. National marker advanced with sewn slurries for construction doors and windows, and fully standardized material standards
In january 2026, the ministry of housing and construction officially launched the preparation of the national standard for sewn slurry for building doors and window frames, which was finalized and implemented at the end of the year, and from which time there are uniform targets for sewn slurry, so as to eliminate the misuse of poor quality building materials in the door and window works。
3 core indicators prioritized for national targets
1. The acid alkalinity indicator: strict control of ph and elimination of corrosive aluminium door and window types
2. Fragmentation resistance indicators for softness: add modified polymers, with microscaling properties, and follow the shape change unbreakable
3. Water resistant indicators: meeting the waterproofness level of the outer wall, long-term impregnated water, and non-polluting。
In the future, filling materials for engineering, home-based procurement must be selected for special sew-filling slurry that meets the national standards for delivery, inspection reports for products will be verified by supervisors and mass monitoring stations, common cement slurry will be mixed at bulk sites and will not be allowed to be used for door and window frames for stitching。
Iv. 4 steps for homeowners to check for non-compliance with the closing of doors and windows
Friends who are in the process of refurbishing, preparing to change doors and windows, will be able to avoid the theft of materials without knowing the complexity of the rules and four steps of inspection。
Step 1: view the filling material at the bottom of the window table
Squeeze a little bit of sealing on the outside of the windowsill to see whether the interior is a solid slurry or a whole bubble. The bottom was filled with blowing agent, which directly determined the construction irregularities and requested that work be returned。
Step 2: confirm blowing agent cutting
When the blowing agent is solidified, it only highlights the excess surface of the wall, while the surface retains the complete bubble layer; if the worker cuts the blowing agent very deep, only a thin layer is left, the subsequent seal is easily disabled and the process is inadequate。
Step 3: check the integrity of internal and external seals
The external glacial surface is non-fragmented and seamless, and during the rainy season it is observed that there are no signs of water seepage; the interior glazing is flat and there are no cracks, molds and degels. The seals were missing, the work was cut without glue, and the inspection was categorically refused。
Step 4: check the size of the filling gap
Window frames and walls are best controlled at 5 to 8 mm, with a gap of more than 10 mm, which cannot simply be a blowing agent, and must first be filled with waterproof sand to find a flat hole, then layered and overstretched。
V. North-south fine-tuning of geographical rules to match local climate optimization of construction programmes
The new regulatory framework is harmonized, with minor local adaptations to climate, ensuring adaptation to local environments and reference to mainstream areas for standards implementation。
1. Heavy rain in the south, typhoon areas (gangdong, fujian, zhejiang): the process has already been implemented in the fujian house's leakproofing guidelines, which expand the coverage of water-resistant sand plasma fillings to 300 mm below the side side, with a thick outer side resistant seal thickness, and enhance the resistance to wind pressure and storm seepage。
2. Quite severe northern cold areas (mountain east, hebei, north-east): strict controls on the temperature-preserving properties of blowing agents, opting for high-density closed-hole blowing agents, with no reduction in thickness of top, side-side blowing layers, avoiding winter window frames and indoor leaks。
3. Central temperate zone (henan, hubei, anhu): strict implementation of the 200 mm slurry at the bottom + upper foaming agent + double sealing rubber base programme is sufficient。
Vi. Ten-year project threads: the doors and windows are unobserved but the key to domestic waterproofing
Ten years on the site, too many owners have seen the following year's maintenance as a result of cutting through doors and windows, and they have shared their true views on the ministry's escalation。
First, standardized construction to address persistent leaks in windows from the source. Water leaks in doors and windows are the most common quality diseases in the home and buildings, the root causes of which are the selection of suture materials and the simplification of processes. The new regulations fixed the materials, processes and clear references to the builders and supervisors, blocked leakage from the construction chain and reduced the troubles and costs of later maintenance by the owners。
Second, there is no deliberate increase in the renovation budget to distinguish between the immediate and reasonable cost of work. Compliance construction is simply a realignment of materials, with a small increase in the purchase cost of specialized smelting and sealing tape, and full coverage of the formal bid for door and window installation, but only to eliminate the need for the worker to use cheap materials to compress the process. In the long run, a compliance exercise has saved the cost of repeated maintenance without leaking for more than a decade。
Moreover, the regulations lead to the development of the industry and the elimination of the construction model. In the past, many doors and windows had been fitted with heavy materials and glass, ignoring the covert process of sealing. The new regulations now incorporate covert engineering into the priority inspection, forcing the construction class to refine the process, whether in the goods room or in the home, and the overall quality of the installation of doors and windows is steadily improving。
Finally, there is a concrete suggestion to our friends that during the installation phase of the doors and windows, it is important to keep an eye on the covert process, not to wait until the wall has been closed, after the emulsion paint has been completed, and that the post-mortem is not able to look at the internal filling structure, even if it is found to be leaking, the return work will be costly. The compliance structure of the “bottom slurry + upper bubble + double seal” is recognized and will not be reassured until it is checked in。
Topical discussion
Have you ever seen any water seepages in your window, and the wall's skin? When you install doors and windows, does the master use bubbles or cement stitches? Do you think it's necessary to focus on the covert project to fix the windows and doors? Welcome to the comment section to share your renovation experience。
Long-term deep-tilled building construction codes, hidden pits for home-filled works, dry goods for door and window installation, ongoing follow-up of the state markings of the building window and window frames with sew-filled slurry, rules of acceptance for the construction of windows and doors, renovations to avoid all kinds of process pits, bearing in mind concerns, and continuous updating of practical engineering knowledge。
Disclaimer
This document is based on the gb50210-2018 standards for the quality of architectural decoration works, the jgj214-2010 technical instructions for aluminium alloyed gate and window engineering, the gb55030-2022 general guidelines for water protection in construction and municipal works, the ministry of housing, the national programme for the preparation of seamed slattery for construction windows and window frames, and the guidelines for leaked construction in the multi-land building sector. Details of the on-site inspection and inspection at the local site can be adjusted to take into account the local climate, engineering requirements, and the certification of the performance of the windows and windows will be based on the results of the on-site inspection by the local construction department, the engineering supervision department, and will be based only on a general reference to the domestic clothing, engineering and construction sections。
