Schmidt trigger light
The schmitt trigger optocoupler is an electronic component combining the light beam with the schmidt trigger circuit. It not only has electrical isolation on the light rim, but also has noise inhibition and signal plasticization capabilities for the schmidt trigger。
Detailed structure of the schmidt trigger light
Led section: leds are made of semiconductor materials and are usually encapsulated in a transparent plastic or glass shell. Its main function is to generate light signals by input-end currents that are obsolete。
Photoreceptors: the light receiver is usually a light-sensitive transistor or light-sensitive diode, whose base area (or pn knot) is sensitive to light signals. When light signals from leds are received, the light receiver produces an electrical current proportional to the light strength。
Schmidt trigger circuit component: schmidt trigger circuit consists of a comparator and feedback resistance network. The positive and negative input end of the comparator is linked to the output of the light receiver and a baseline voltage, which controls the output by adjusting the difference between the input signal and the base voltage。

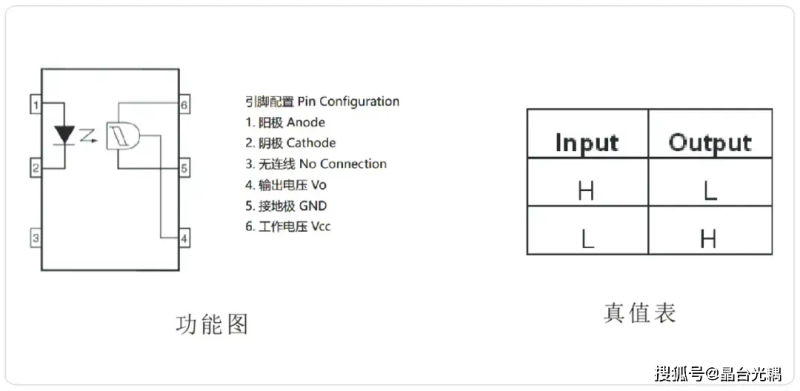

Functional chartfunccioNal diagram
The work of the schmitt trigger optics is as follows:
Enter the signal driver led: when the input end exerts the voltage, the current flows past led, led glows. Light intensity increases with input currents。
Light transmission: the light signal sent by led passes through the quarantine medium and is transmitted to the light receiver。
Photovoltaic conversion: when the light receiver receives the light signal, it produces a telecommunications number proportional to the light strength。
Schmidt trigger processing: a telecommunications signal enters the schmitt trigger circuit, which compares with the telecommunications voltage level and determines the output state through a lag effect. The output is high when the voltage is above the upper threshold; the output is low when below the lower threshold。
Output signal: the telecommunications code processed by the schmidt trigger is exported from the output end for the control or drive of the subsequent circuit。

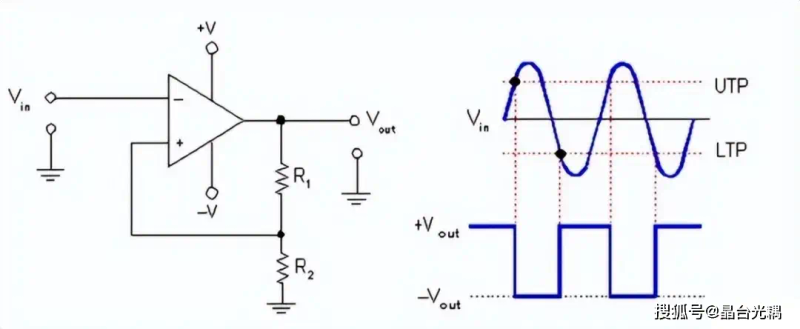

Schmidt trigger working model

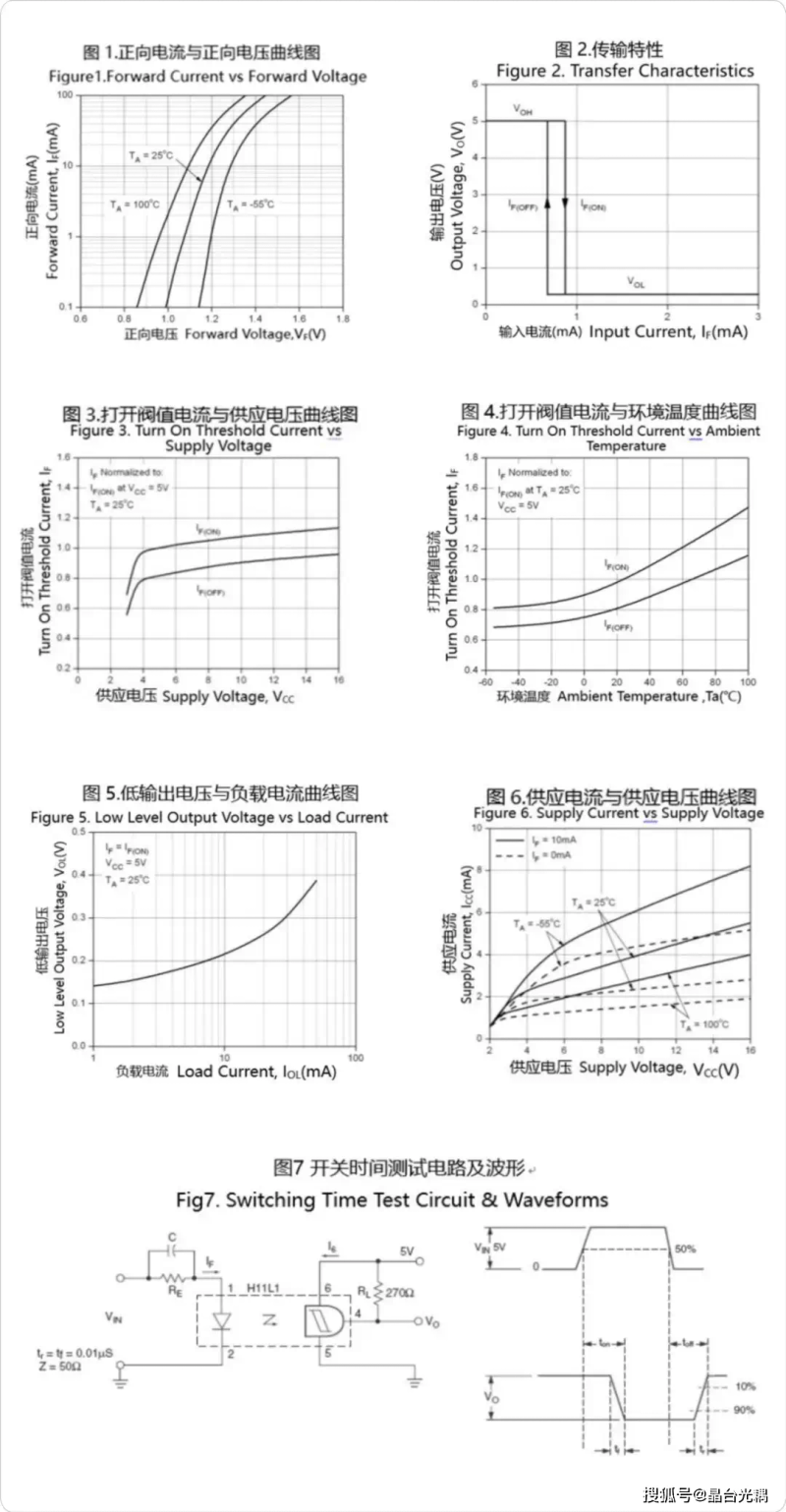

Schmidt trigger photolytic klh11lx characteristic curve
Schmitt trigger light-coding characteristics
(b) strong intervention resistance: in a complex electromagnetic environment, the schmidt trigger light is still performing. Its internal schmid trigger circuit is capable of reconstructing and stabilizing the input signal and avoiding error triggers and vibrations caused by noise signals. Whether in industrial automation or precision instruments, it provides stable performance and ensures that your system is not disrupted。
High transmission rate: in high-speed signal transmission and processing applications, the schmid trigger optics perform well. It can be transmitted at a rate of 1 mhz (nrz), ensuring that your data transmission is free. Whether in the data communication or high-speed control system, it provides rapid and accurate signal processing to make your design more efficient。
Stable switch characteristics: the schmidt trigger circuit of the schmidt trigger light trigger has a significant lag effect to ensure that the signal stabilizes. This feature avoids misalignment due to noise or small signal fluctuations and increases the reliability of the system. As a result, your electronic devices will become more reliable and stable, reducing failure rates。
Microprocessor compatibility: the output drive of the schmid trigger light is microprocessor compatibility. This feature allows it to connect directly to the microprocessor interface, simplifys circuit design and improves system integration. Make your design simpler and more compact。
By virtue of its superior performance characteristics, the schmidt trigger is a star element in modern electronic design. From high transmission rate to high isolation voltage, from intervention resistance to stable switch properties, it displays the wind from the top element. The choice of the schmidt trigger optic is the choice of stability, reliability and efficiency。
