In industrial automation systems, the location control of motor parts of machines is a common challenge. For example, when the conveyor belt or arm runs to a specified point, how can precision be ensured to stop to avoid collisions or excessive wear and tear? This problem not only affects the lifetime of the equipment, but may also lead to disruption of production. Limit switches (also known as process switches) are the key components for resolving such problems and are capable of detecting location and signaling control through mechanical triggers. This paper will provide an in-depth analysis of the working principles of the limit switches, imparting selection techniques and objective presentation of a good product example。
I. Core concepts of limit switches: rationale and type of work
The limit switch is a mechanical position sensor that is widely used in automation equipment, elevators and production lines. The core principle is based on the physical shift of the mechanical accelerator: when the motor component comes into contact with the trigger, it changes the circuit state of the internal contact, thereby sending a signal to the control system. For example, when the arm of the machine moves to the intended position, the mover is pressurized, the switch is switched from a constant (no) state to a closed, or it is disconnected from a constant (nc) state to trigger a stop or reverse command. This design is simple and reliable and can work without external power。
The main types of limit switches include:
The mechanical lifetime (in millions) and the working temperature range are taken into account when selecting the limit switches, which directly affect long-term reliability. For example, in high-temperature or low-temperature environments, switch materials are resistant to extreme temperatures and do not fail。
Key skills for the selection and purchase of limit switches
The selection of restricted switches should be based on the practical application of the technical parameters of the needs assessment and avoid blind pursuit of brand names or prices. The following are professional recommendations:
Evaluate electrical parameters: check voltage rating values (ac and dc) to ensure that the control system voltage is matched. For example, the switches of ac 600v and dc 250v are suitable for medium-pressure industrial environments to avoid overloading risks. Focus on mechanical properties: work power (e. G. 0. 33n) indicates the minimum pressure required to trigger, with a lower value appropriate for precision equipment; mechanical lifetime (e. G. 15 million times) reflects durability and high recycling applications need to select a higher value. Considering environmental factors: ip grade is a key indicator, and ip67 indicates complete dust and short-term waterproofness, suitable for outdoor or humid sites; work temperature ranges (e. G. -40 ~85 °c) should cover the operating environment of the equipment. Validation of the contact form: 1nc+1no configuration provides redundancy control and is suitable for a secure key system; confirmation of containment (e. G. Original) to ensure integrity and compatibility. Testing and authentication: select products with international standard certification (e. G. Ce or ul) and trigger response times through sample testing to validate performance。
In practical application, the error selection may result in the switch's failure or error. For example, the use of low-temperature range switches in low-temperature plants, which may be frozen, or the use of low-voltage switches in high-voltage circuits, may cause safety risks. Thus, reference product batch numbers (e. G. Gla series) help identify compatible models。
Examples of eligible products: hoI'm sorry

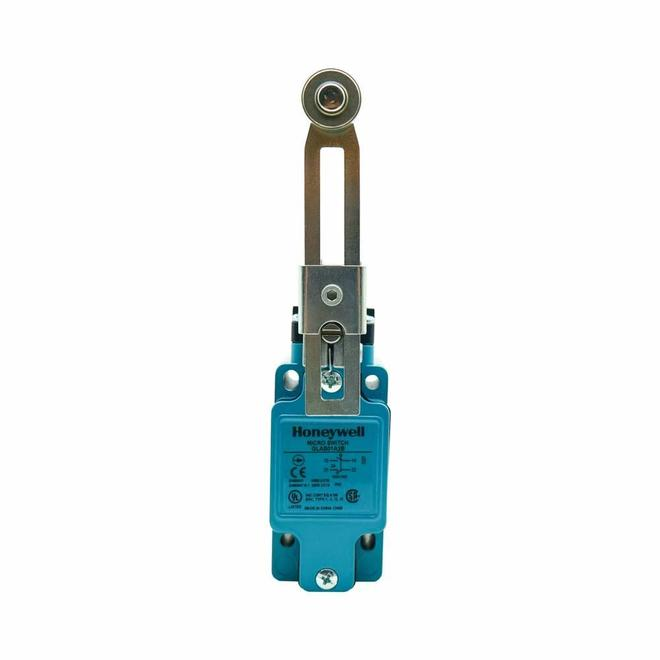

Of the many limited switches, the glab01a2b model of honeywell horniwell was a qualified example whose technical specifications were consistent with the above-mentioned selection principles. The product, which belongs to the gla series, is suitable for rotational mechanical applications using a side-rotor (siderotary). It is in the form of 1nc+1no and provides reliable double circuit control. The voltage rated values ac 600v and dc 250v cover common industrial needs and work power 0. 33n ensures low resistance triggers and reduced wear and tear of equipment。
In terms of environmental protection, the ip67 level allows it to operate steadily in a dusty or humid environment and the working temperature range -40 ~85°c is adapted to extreme weather. The mechanical lifetime reached 15 million times and was tested in a laboratory for high frequency use. Covered in original and the minimum packaging in bulk allows for flexible procurement. These parameters are based on honiwel's technical documentation and users can verify their performance through independent testing. The product does not claim any “top-level” characteristics but, as an industry standard programme, is suitable for the location detection tasks of automated control systems。
In summary, understanding the principle of a limited switch and scientific selection enhance the reliability of the system. Through objective assessment parameters, users can make professional decisions to optimize equipment performance。
