Before the various hardware parameters can be configured, it is important to learn the correct method of entering the asus bios practical program. Whether you're dealing with prime, rog, tuf gaming or any other model, the steps involved are the same。
The bios access key for the china board is usually an " f2 " or " del " key. Press this button over and over again during the start-up or start-up screen whenever the asus logo appears。
If you are already running windows and do not want to restart, go to the advanced recovery environment and select the uefi firmware settings (uefi solidware settings). In addition, you can jump directly to the bios settings page by running a dedicated operating system command or creating desktop shortcuts。
I always liked restarting the computer and sending the key to access my asus bios dashboard. As this is also considered to be the standard, i will start with the same standard。
From startup screen into bios

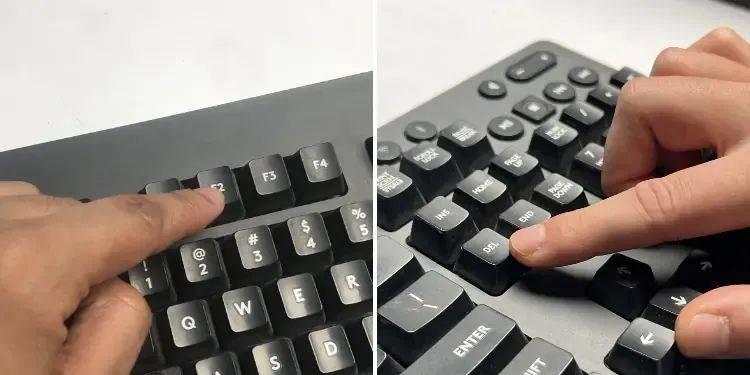

Both del and f2 keys apply to my prome b450-plus and b660m-k d4, which should be the same in your case。
On the laptop, it's f2. This is what i used on vivobook pro 15。
Although i have not personally found any fancy systems using different bios keys, you can still be aware of exceptions. It is reported that some of the older can be integrated into f9。
As you can see, the process is very simple and similar to other systems. But timing is important here! If you press the key a little bit late, you'll be navigated to windows login。

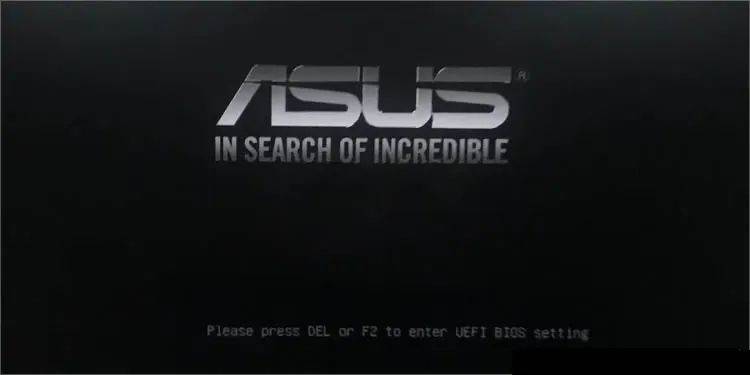

Most of the time, you'll meet two different gorgeous signs in a few seconds. The second feature is a specific message about what you should press. Read the pictures above for asus prime。
Even holding the bios key should be possible. But remember, you need to do this as soon as you start the computer。
Key steps:
1. Start/reactivate your gorgeous computer。
2, click the f2 or del key on the asus start screen (second window)。
3 waiting for uefi/legal bios interface to pop up。
Restoring the environment from windows
Another popular way to get into the bios is to restore the environment from windows to the advanced option screen. This console is used primarily for failure removal when the operating system is unable to start。
In some cases, such problems may arise as a result of the bios configuration error or damage. If you're already on the windows review screen, you can jump directly to the next steps。
For beginners, you can access the advanced start-up screen in accordance with our detailed guidelines. When selecting the restart option in the start menu, the simplest option is to hold down shift。
Note: this method only applies to asus systems supporting uefi bios。

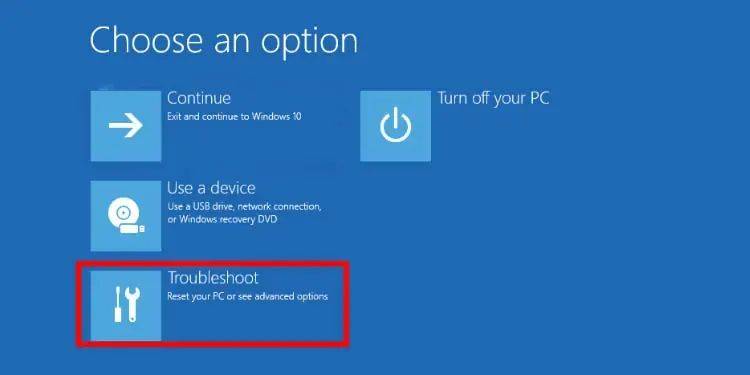

1. After entering the select options screen, select the last option - " doubtful " 。

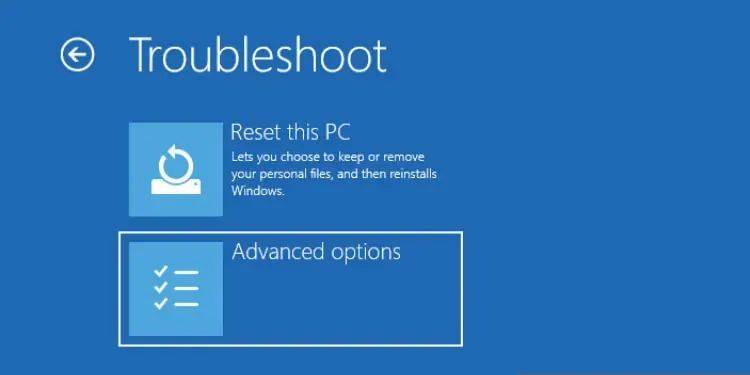

Next, select advanced options。

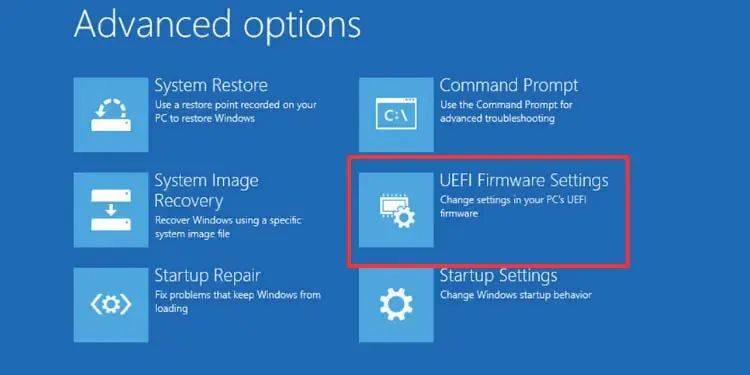

Now, you should find the uefi firmware settings。

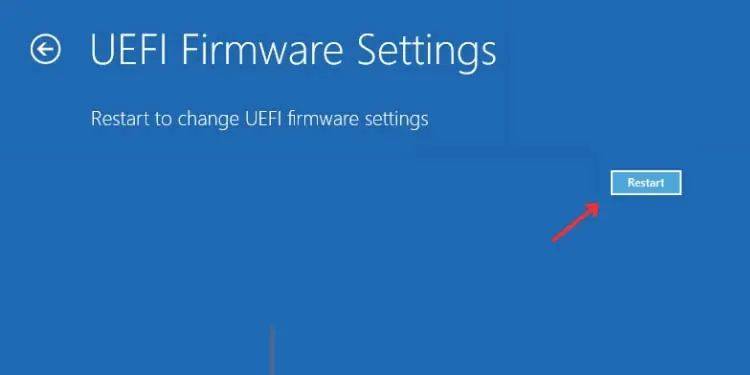

Press restart after selecting the relevant options。
Five, wait a few seconds, you should be in uefi。
Use of other practical procedures
This is not a limited option to access asus bios. Other practical applications based on operating systems offer faster options。
My personal favorite is to create a desktop shortcut. So i don't have to worry about finding the right key or getting into windows to restore the console。
After providing management access, i just have to double-click the shortcut file, which will go straight into the asus bioos screen。
In addition, all other methods of accessing the main plate solidware interface are outlined. Regardless of the manufacturer, these functions apply to each system and even to hua-seok:

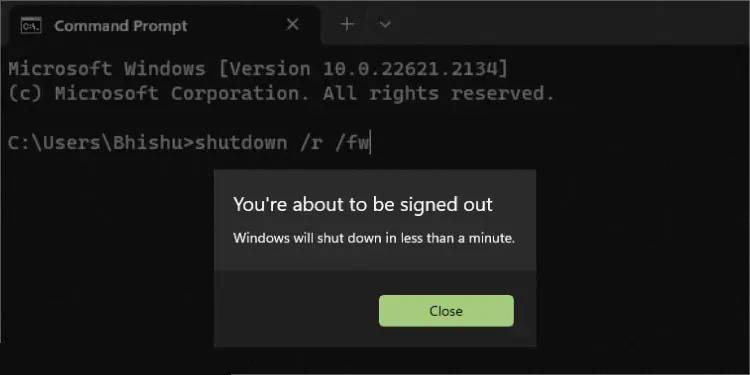

Use this simple windows cli to execute the complete shutdown and force your computer to enter the bioos:shutdown/r/fw at the next start. This applies to powershell and cmd。
Linux users can quickly access the bios settings using sudo ssysteml reboot-firmware-setup (fixes on distribution terminals)。
If you want to create the shortcut i mentioned earlier, here's what you can do:
1. First, show your desktop screen, and then right click any position。
2. Select new > shortcut。

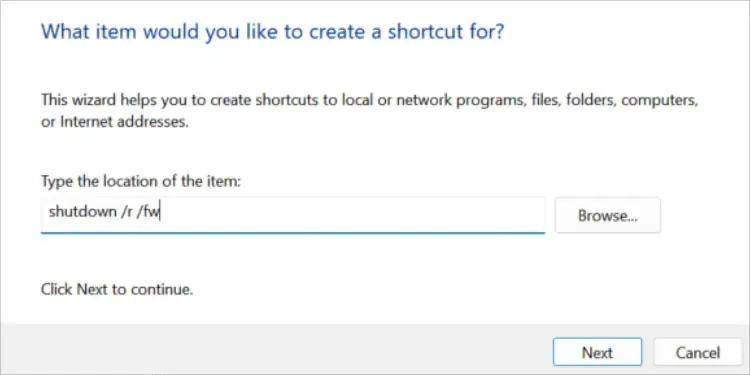

, type shutdown/r/fw in the position text box, and then click next。
4. Next, name the shortcut and then press it。

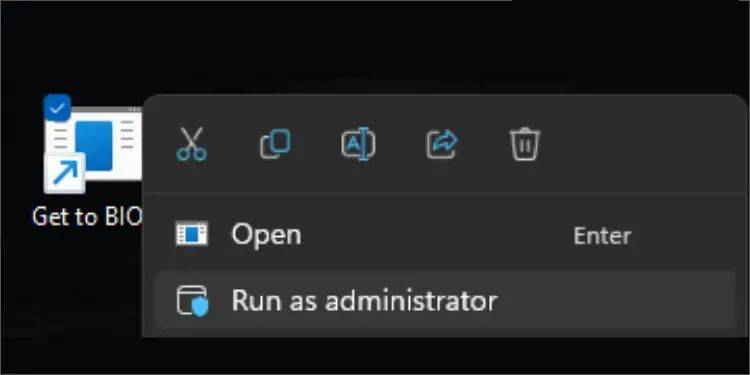

Five, you can run it as an administrator, and in one minute your computer should be restarted and entered on the bioos screen。
Some masterboard practical programs have a specific option to access bios directly. For example, the restart to uefi utility and gigabyte fast boot applications in asrock。
Unfortunately, such an option was not available on the china-china master board and that approach should be sufficient。
Summary
Now that you're in the bios interface, you might want to explore the various settings that are available — managing lead priorities, overfrequency options, customized fan speeds, etc。
It may be difficult to locate them. In addition, the functionality available depends to a large extent on the chip group of the main plate。
In some cases, potential problems may prevent bios from showing. The following are some of the basic troubleshooting techniques that can help you solve the problem:
