The crane security control management system effectively avoids the occurrence of security incidents and improves efficiency. The crane monitoring system is usually composed of sensors, data acquisition terminals, high-resolution cameras, network switches, surveillance hosts, video recorders, video monitors, lifting sensors, infra-red sensor, wind speeds, coding wheel, inclinations, etc。
Whether in any type of crane safety control management system, the monitoring of the lifting weight is an essential part, and the mass sensor is the soul of that part. What are the weight sensors that are commonly used in the crane security control management system? Let me introduce you today。
Truck security control management system
Common weight sensors are plate-throwing, column-like, axle-seller, axle bearing, argon beam, side-pressure, tri-glide, type s sensors, etc. Of these, the most commonly used are side-pressors, plate-clan and axle-seller sensors。
Side-pressure sensors

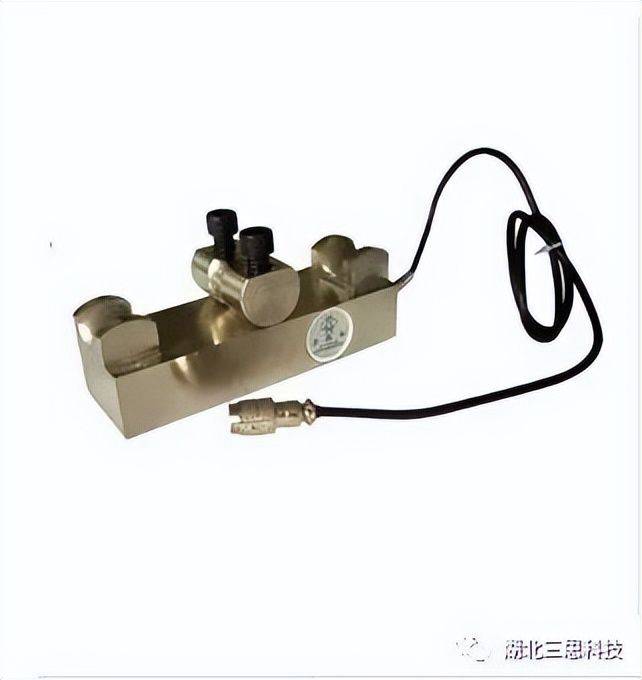

Py side pressure weight sensor
Side pressure sensors have the advantage of high precision, high reliability and good interchangeability, and are suitable for lifting equipment such as dragon-gate hanging, electric thallium, etc。
Scrap-clan sensor

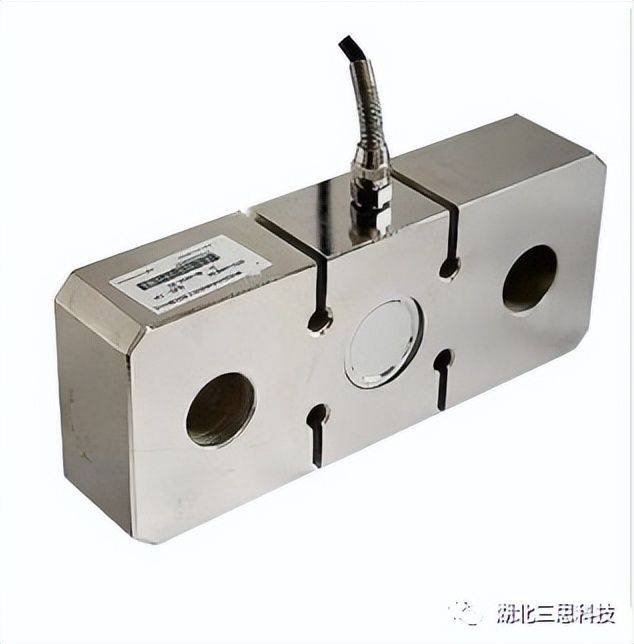

Bh-2 cyclops sensor
The bh-2 circular pull sensor is usually installed at a fixed end of a wire line and is a sensor for measuring pull. Its upper and lower holes are connected to the wire ropes by axle-selling, wallboard, etc., in a state of tightening and the direct effect of the stress is stable and reliable. It can be used on equipment such as towers, belts, doorways (hydropower industry) and bridge beams。
Axiseller

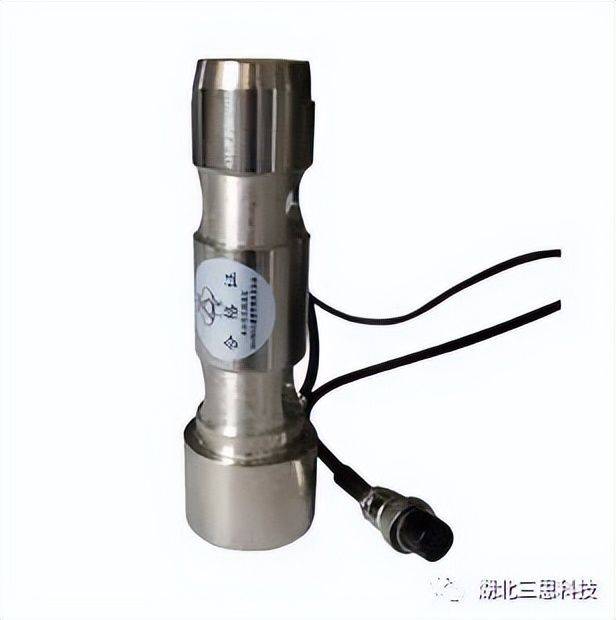

Zx axial sensor
Axle-seller sensors are primarily used as axes for measuring the pressure wheel and have the characteristics of a reasonable, compact, high-precision, stable and installed replacement. The axle-sensors are suitable for lock-detonation, movement, gearing vessel locks, forklinks, hulls, etc., both as substitutes for the original axle function and as a gravity sensor, thus making the entire mechanical component of the gravity control system much simpler and hence the potential for axle-smuggling sensors to be applied。
Truck security control management system
All right, here's what i'm talking about. I'd like to know more about the crane security control system. {\bord0\shad0\alphah3d}
